Radiator

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front bumper cover. Refer to Section 501-19 .

2. Drain the SC cooling system. Refer to Supercharger Cooling System Draining, Filling and Bleeding .

3. Remove the ACL housing and the ACL inlet pipe. Refer to Section 303-12 .

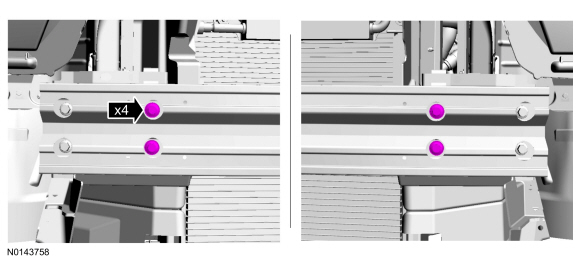

7. • To install, tighten to 25 Nm (18 lb-ft).

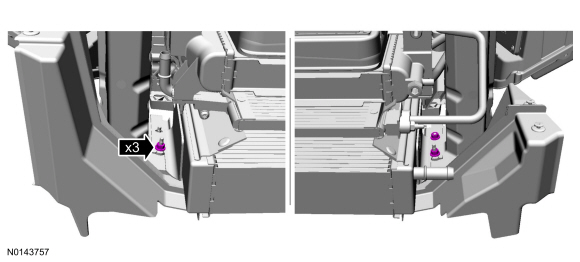

8. • To install, tighten to 25 Nm (18 lb-ft).

Installation

1. To install, reverse the removal procedure.

2. Fill and bleed the SC cooling system. Refer to Supercharger Cooling System Draining, Filling and Bleeding .
