SECTION 303-04A: Fuel Charging and Controls — 3.7L
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

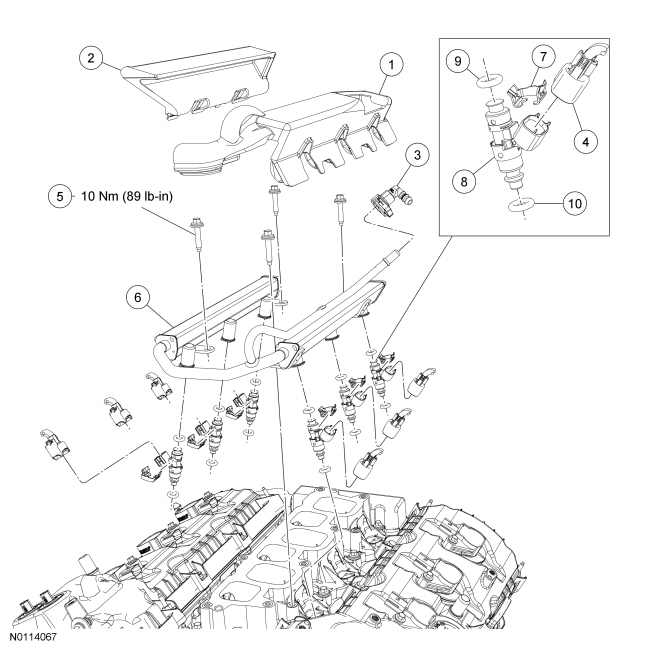

Fuel Rail and Fuel Injector — Exploded View

NOTE: Refer to the on-line Workshop Manual to view this illustration as an interactive exploded view, requires Adobe® Acrobat® 8.0 or higher.

NOTE: Refer to the on-line Workshop Manual to learn about using an Interactive Illustration.


Item Part Number Description
1 6P013 LH fuel rail noise insulator shield
2 6P013 RH fuel rail noise insulator shield
3 — Fuel tube-to-fuel rail quick connect coupling (part of 9J280)
4 — Fuel injector electrical connector (part of 12C508) (6 required)
5 W503279 Fuel rail bolt (4 required)
6 9F792 Fuel rail
7 9C995 Fuel injector clip (6 required)
8 9F593 Fuel injector (6 required)
9 9229 Upper fuel injector O-ring seal (6 required)
10 9229 Lower fuel injector O-ring seal (6 required)
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
