SECTION 303-04A: Fuel Charging and Controls — 3.7L	2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION	Procedure revision date: 01/07/2013

Throttle Body

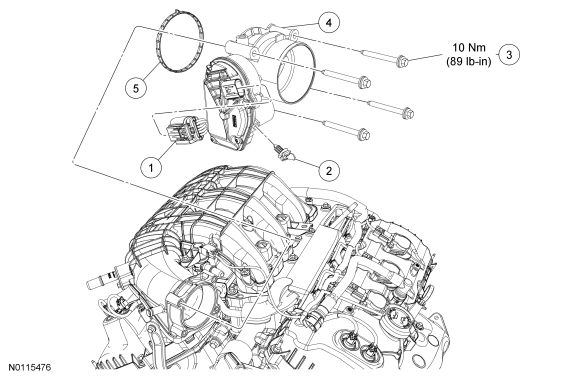

Item	Part Number	Description
1	—	Electronic throttle control electrical connector (part of 12C508)
2	—	Electronic throttle control electrical connector wiring harness pin-type retainer (part of 12C508)
3	W713443	Throttle Body (TB) bolt (4 required)
4	9F991	TB
5	9E936	TB gasket

Removal and Installation

NOTE: LH shown, RH similar.
If equipped, remove the 4 nuts (2 shown) and the strut tower cross brace.
- To install, tighten to 35 Nm (26 lb-ft).

If equipped, detach the 2 retainers and remove the engine appearance cover.

Remove the engine Air Cleaner (ACL) outlet pipe. For additional information, refer to Section 303-12 .

Remove the bolt for the intake manifold vacuum tube.
- Detach the intake manifold vacuum tube pin-type retainer from the Throttle Body (TB).
- To install, tighten to 10 Nm (89 lb-in).

Disconnect the electronic throttle control electrical connector.
- Detach the electronic throttle control electrical connector wiring harness pin-type retainer.

Remove the 4 bolts and the TB .
- Discard the TB gasket.
- To install, tighten to 10 Nm (89 lb-in).

NOTE: Install a new TB gasket.
To install, reverse the removal procedure.
