SECTION 303-04B: Fuel Charging and Controls — 5.0L (4V)
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/15/2013

Fuel Rail and Fuel Injector — Exploded View

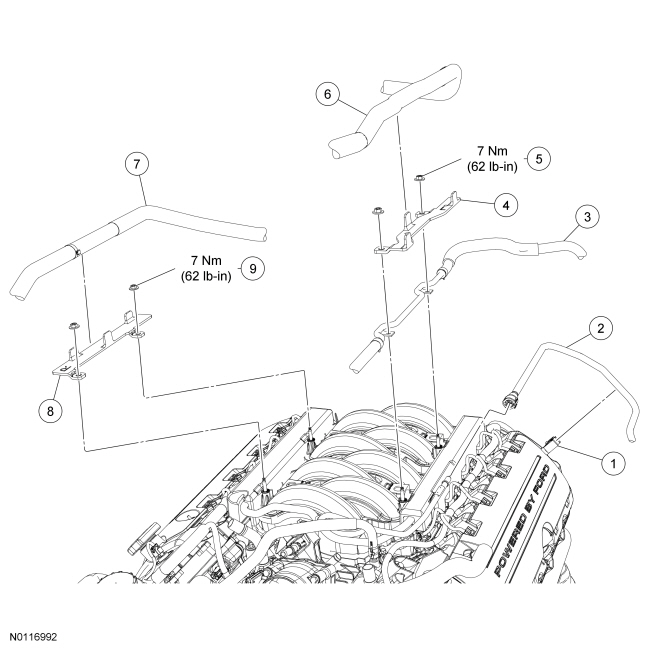

Hoses and Supports — 5.0L (4V)

Item Part Number Description
1 — Fuel supply tube retaining clip (part of 9J280)
2 9J280 Fuel supply tube
3 9C482 Vacuum tube
4 8A082 LH heater hose support
5 W713946 LH heater hose support nut (2 required)
6 18472 LH heater hose
7 18472 RH heater hose
8 8A082 RH heater hose support
9 W713946 RH heater hose support nut (2 required)

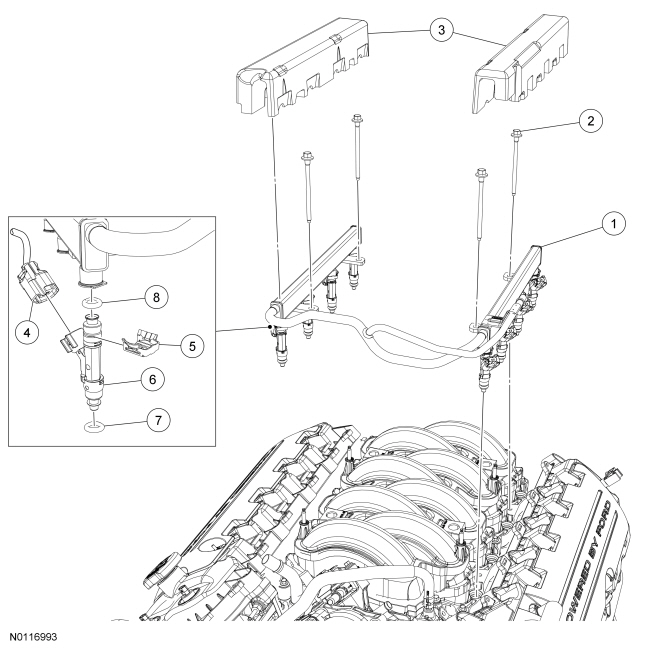

Fuel Rail Insulators, Fuel Rail and Fuel Injectors — 5.0L (4V)

Item Part Number Description
1 9F792 Fuel rail
2 W714864 Fuel rail bolt (4 required)
3 6P013 Fuel rail insulators (2 required)
4 — Fuel injector electrical connector (part of 12A581) (8 required)
5 9C995 Fuel injector clip (part of 9F593) (8 required)
6 9F593 Fuel injector (8 required)
7 9229 Lower fuel injector O-ring seal (part of 9F593) (8 required)
8 9229 Upper fuel injector O-ring seal (part of 9F593) (8 required)
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
