SECTION 303-04C: Fuel Charging and Controls — 5.8L (4V)
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Fuel Pump Control Module

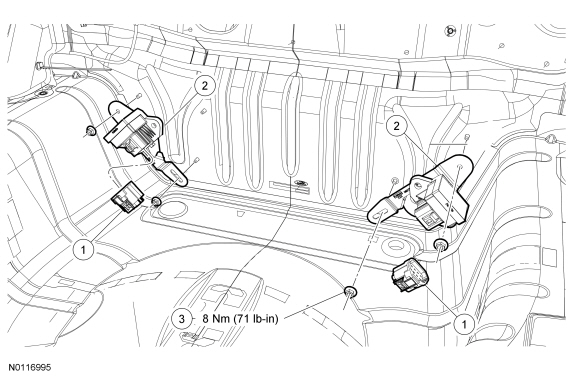

Item Part Number Description
1 Part of 14A005 FPCM electrical connector
2 9D370 FPCM
3 W707142 FPCM nut (4 required)

Removal and Installation

NOTE: Each FPCM is located in the spare tire stowage compartment and is serviced separately.

  1. Disconnect the FPCM electrical connector.
  1. Remove the 2 nuts and the FPCM .
  1. To install, reverse the removal procedure.
