SECTION 303-04C: Fuel Charging and Controls — 5.8L (4V)
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

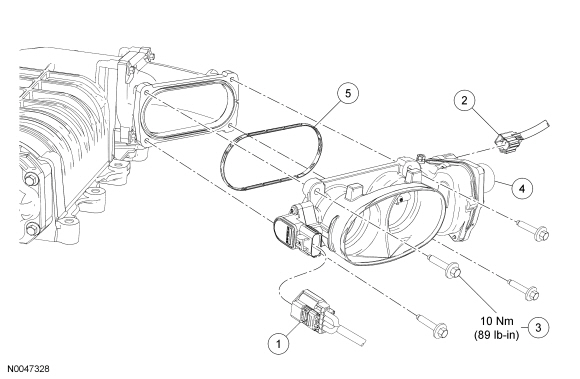

Throttle Body


Item Part Number Description
1 Part of 12C908 Throttle Position (TP) sensor electrical connector
2 Part of 12C908 Electronic throttle control electrical connector
3 N806154 Throttle Body (TB) bolt (4 required)
4 9E926 TB
5 9E936 TB -to- TB spacer gasket

Removal and Installation

  1. Remove the Air Cleaner (ACL) outlet pipe, refer to Section 303-12 .
  1. Disconnect the Throttle Position (TP) sensor electrical connector.
  1. Disconnect the electronic throttle control electrical connector.
  1. Remove the 4 bolts and the Throttle Body (TB) and discard the gasket.
  1. To install, reverse the removal procedure.
