SECTION 303-05: Accessory Drive
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Front End Accessory Drive (FEAD) — Exploded View

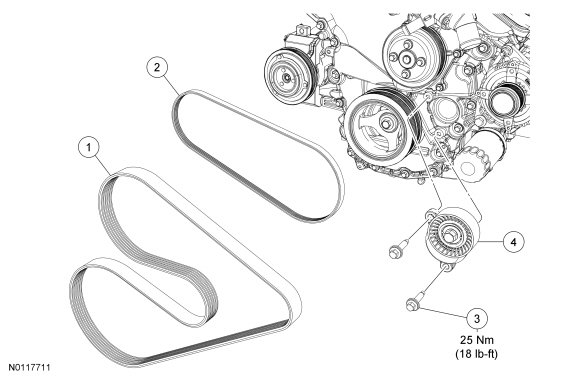

3.7L

Item Part Number Description
1 8620 Accessory drive belt
2 6C301 A/C compressor drive belt
3 W713261 Accessory drive belt tensioner bolt (2 required)
4 6B209 Accessory drive belt tensioner

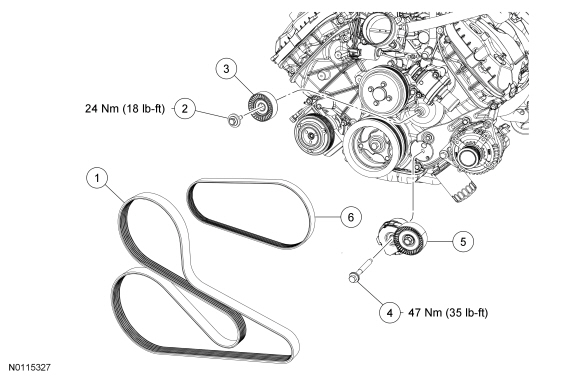

5.0L (4V)

Item Part Number Description
1 8620 Accessory drive belt
2 W707288 Accessory drive belt idler pulley bolt
3 19A216 Accessory drive belt idler pulley
4 W709638 Accessory drive belt tensioner bolt
5 6B209 Accessory drive belt tensioner
6 6C301 A/C compressor drive belt

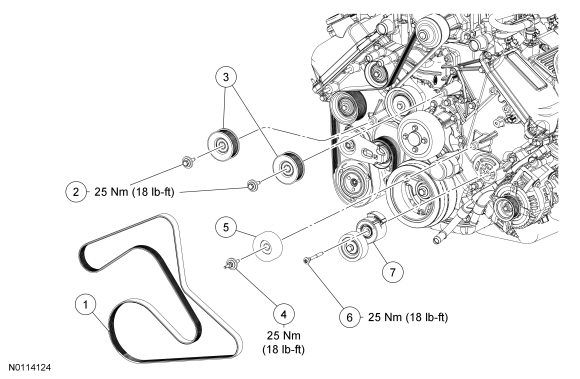

5.8L (4V)

Item Part Number Description
1 8620 Accessory drive belt
2 N808102 Accessory drive belt grooved idler pulley bolts
3 19A216 Accessory drive belt grooved idler pulleys
4 W712808 Accessory drive belt smooth idler pulley stud bolt
5 19A216 Accessory drive belt smooth idler pulley
6 — Accessory drive belt tensioner bolt (part of 6B209)
7 6B209 Accessory drive belt tensioner
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
