SECTION 303-05: Accessory Drive
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

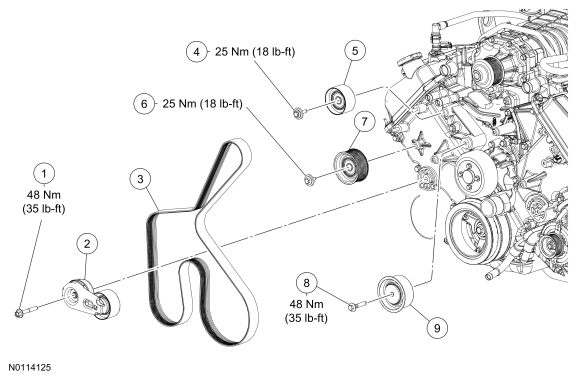

Supercharger Belt, Tensioner and Pulley — Exploded View


Item Part Number Description
1 — Supercharger (SC) belt tensioner bolt (part of 6B209)
2 6B209 SC belt tensioner
3 8620 SC belt
4 W707288 SC belt smooth idler pulley bolt
5 19A216 SC belt smooth idler pulley
6 N808102 SC belt grooved idler pulley bolt
7 6C348 SC belt grooved idler pulley
8 N808296 SC belt heavy load idler pulley bolt
9 19A216 SC belt heavy load idler pulley
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
