SECTION 303-07A: Engine Ignition — 3.7L
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Engine Ignition Components — Exploded View

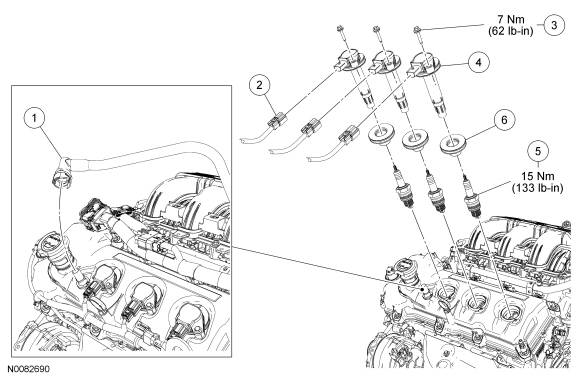

LH Ignition Coil-on-plugs and Spark Plugs

Item Part Number Description
1 — Crankcase ventilation tube-to-valve cover fitting quick connect coupling (part of 6758)
2 14A464 Ignition coil-on-plug electrical connector (part of 12A581) (3 required)
3 W714507 Ignition coil-on-plug bolt (3 required)
4 12A375 Ignition coil-on-plug (3 required)
5 12405 Spark plug (3 required)
6 12A384 Coil seal (3 required)

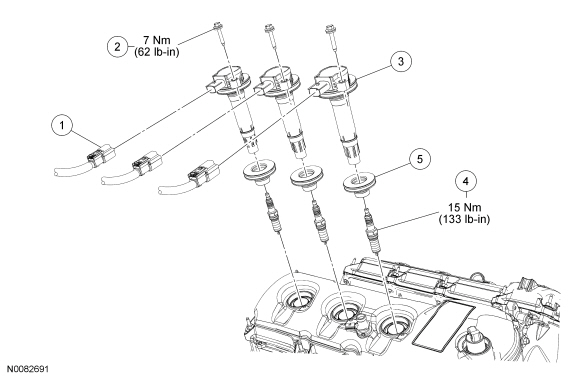

RH Ignition Coil-on-plugs and Spark Plugs

Item Part Number Description
1 14A464 Ignition coil-on-plug electrical connector (part of 12A581) (3 required)
2 W714507 Ignition coil-on-plug bolt (3 required)
3 12A375 Ignition coil-on-plug (3 required)
4 12405 Spark plug (3 required)
5 12A384 Coil seal (3 required)
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
