SECTION 303-07B: Engine Ignition — 5.0L (4V)
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/15/2013

Engine Ignition Components — Exploded View

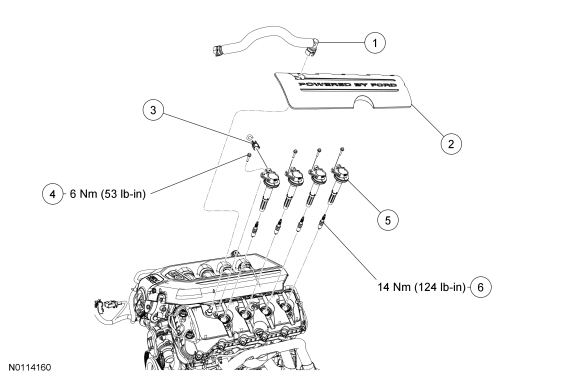

LH Ignition Coil-on-Plugs and Spark Plugs

NOTE: 5.0L (4V)


Item Part Number Description
1 6758 Crankcase ventilation tube
2 6P067 Ignition coil-on-plug cover
3 — Ignition coil-on-plug electrical connector (part of 12B637) (4 required)
4 W714507 Ignition coil-on-plug bolt (4 required)
5 12029 Ignition coil-on-plug (4 required)
6 12405 Spark plug (4 required)

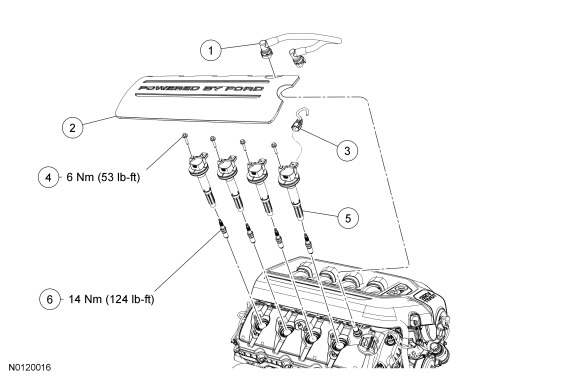

RH Ignition Coil-on-Plugs and Spark Plugs

NOTE: 5.0L (4V)


Item Part Number Description
1 6A664 PCV tube
2 6P067 Ignition coil-on-plug cover
3 — Ignition coil-on-plug electrical connector (part of 12B637) (4 required)
4 W714507 Ignition coil-on-plug bolt (4 required)
5 12029 Ignition coil-on-plug (4 required)
6 12405 Spark plug (4 required)
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
