SECTION 303-08: Engine Emission Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

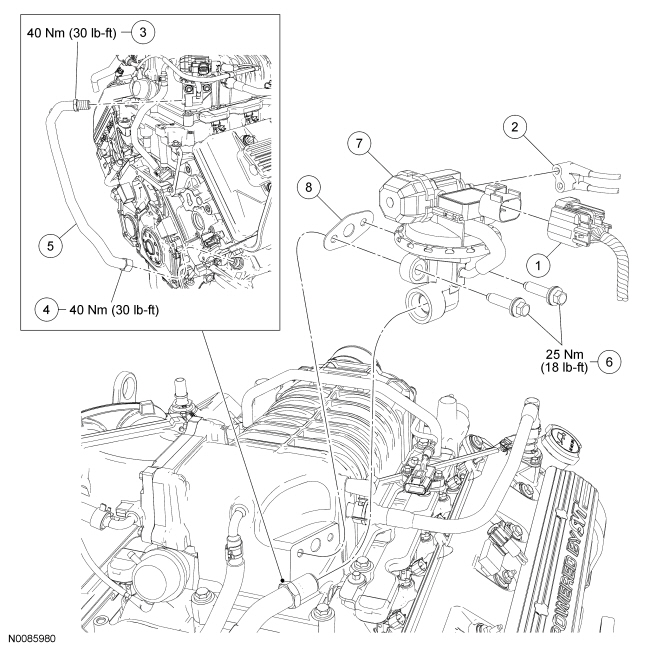

Exhaust Gas Recirculation (EGR) System Components — Exploded View


5.8L (4V) Engine

Item Part Number Description
1 14A464 EGR system module electrical connector
2 9E498 Engine vacuum harness-to- EGR system module connector
3 — EGR system module tube-to- EGR system module fitting (part of 9D477)
4 9F485 EGR system module tube-to-exhaust manifold fitting
5 9D477 EGR system module tube
6 W701232 EGR system module bolts (2 required)
7 9Y456 EGR system module
8 9D476 EGR system module gasket
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
