SECTION 303-12: Intake Air Distribution and Filtering
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

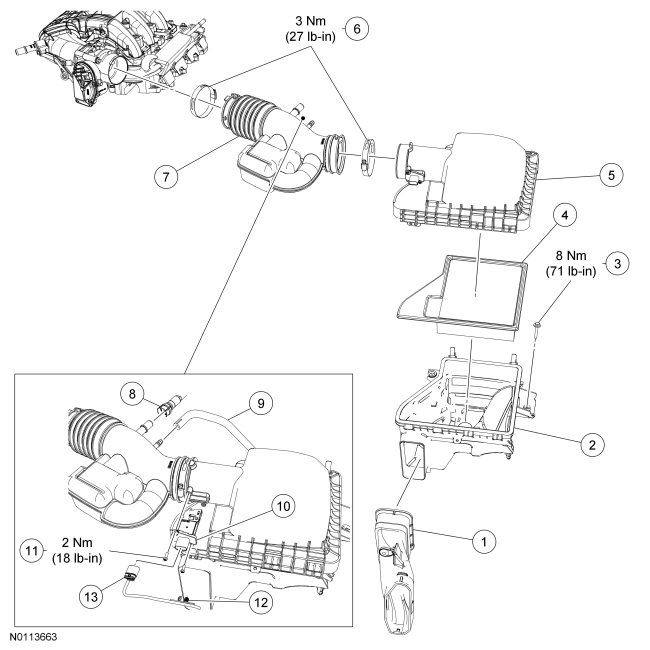

Intake Air System Components — Exploded View, 3.7L


Item Part Number Description
1 9A624 Air Cleaner (ACL) inlet pipe
2 — ACL housing (part of 9600)
3 W505427 ACL housing bolt
4 9601 ACL element (part of 9600)
5 — ACL housing cover (part of 9600)
6 9C632 ACL outlet pipe clamp (2 required)
7 9B659 ACL outlet pipe
8 6758 Crankcase ventilation tube
9 9C482 Vacuum hose (if equipped)
10 12B579 Mass Air Flow (MAF) sensor
11 W711655 MAF sensor screw (2 required)
12 — Wiring harness retainer (part of 14290)
13 — MAF sensor electrical connector (part of 14290)

NOTE: The ACL outlet pipe should be securely sealed to prevent unmetered air from entering the engine.

NOTE: The crankcase ventilation tube is equipped with a quick connect coupling. For additional information, refer to Section 310-00 .

  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
