SECTION 303-12: Intake Air Distribution and Filtering
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

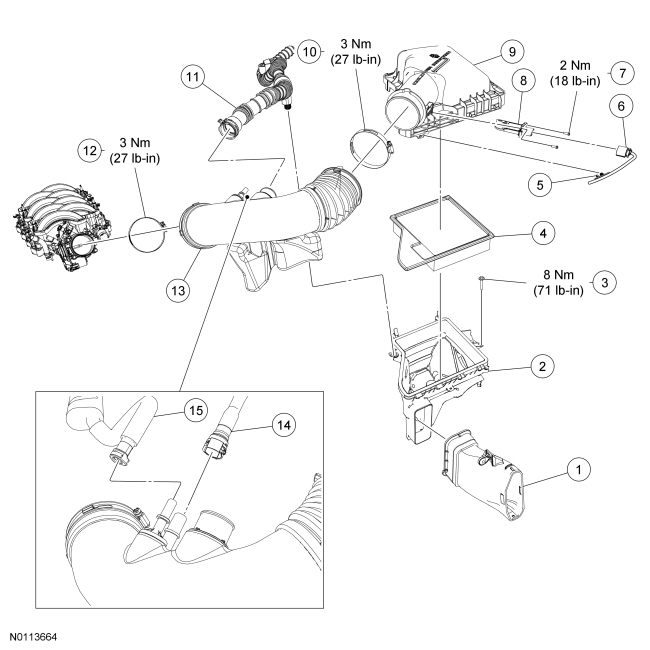

Intake Air System Components — Exploded View, 5.0L (4V)


Item Part Number Description
1 9A624 Air Cleaner (ACL) inlet pipe
2 — ACL housing (part of 9600)
3 W505427 ACL housing bolt
4 9601 ACL element (part of 9600)
5 — Wiring harness retainer (part of 14290)
6 — Mass Air Flow (MAF) sensor electrical connector (part of 14290)
7 W711655 MAF sensor screw (2 required)
8 12B579 MAF sensor
9 — ACL housing cover (part of 9600)
10 9C632 ACL outlet pipe-to- ACL housing cover clamp
11 6C646 Sound enhancement pipe
12 9C632 ACL outlet pipe-to-Throttle Body (TB) clamp
13 9B659 ACL outlet pipe
14 6758 Crankcase ventilation tube
15 9C482 Vacuum hose (if equipped)

NOTE: The ACL outlet pipe should be securely sealed to prevent unmetered air from entering the engine.

NOTE: The crankcase ventilation tube is equipped with a quick connect coupling. For additional information, refer to Section 310-00 .

  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
