SECTION 303-12: Intake Air Distribution and Filtering
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

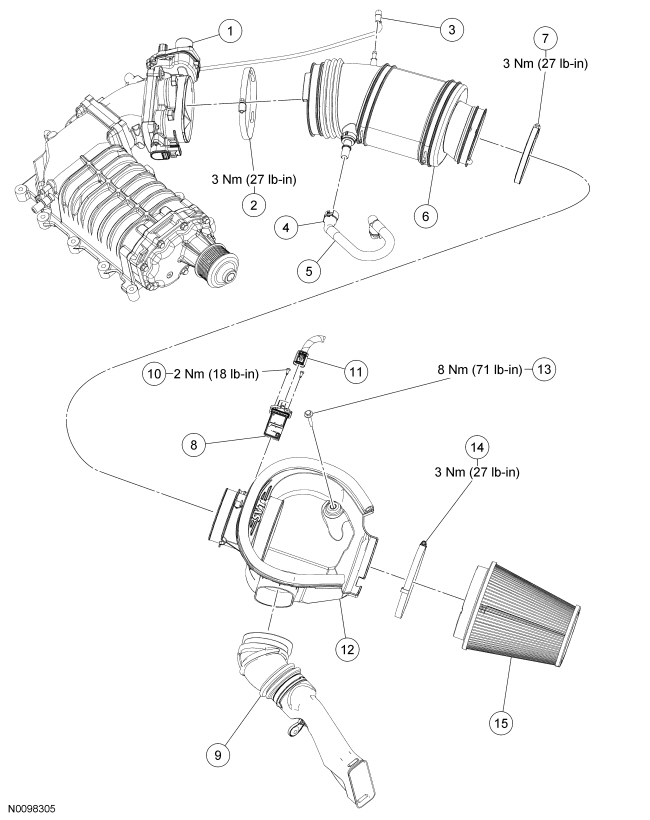

Intake Air System Components — Exploded View, 5.8L (4V)


Item Part Number Description
1 9E926 Throttle Body (TB)
2 — Air Cleaner (ACL) outlet pipe-to- TB clamp (part of 9B659)
3 9E499 Vacuum hose
4 — Crankcase ventilation tube-to- ACL outlet pipe quick connect coupling (part of 6758)
5 6758 Crankcase ventilation tube
6 9B659 ACL outlet pipe
7 — ACL outlet pipe-to- ACL housing clamp (part of 9B659)
8 12B579 Mass Air Flow (MAF) sensor
9 9C675 ACL inlet pipe
10 W709287 MAF sensor screw (2 required)
11 — MAF electrical connector (part of 12A690)
12 9A600 ACL housing
13 W505427 ACL housing bolt
14 — ACL element clamp (part of 9601)
15 9601 ACL element

NOTE: The ACL outlet pipe should be securely sealed to prevent unmetered air from entering the engine.

NOTE: The crankcase ventilation tube is equipped with a quick connect coupling. For additional information, refer to Section 310-00 .

  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
