Supercharger

Removal

1. Release the fuel system pressure. For additional information, refer to Section 310-00 .

2. Disconnect the battery ground cable. For additional information, refer to Section 414-01 .

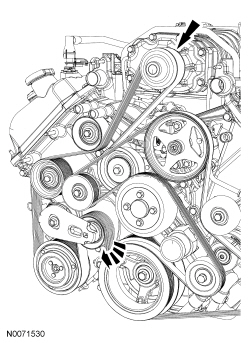

3. Rotate the drive belt tensioner clockwise and detach the drive belt from the Supercharger (SC) pulley.

4. Remove the EGR system module. For additional information, refer to Section 303-08 .

5. Remove the fuel rail. For additional information, refer to Section 303-04C .

6. Disconnect the SC bubbler hose and the SC bypass vacuum actuator vacuum connector.

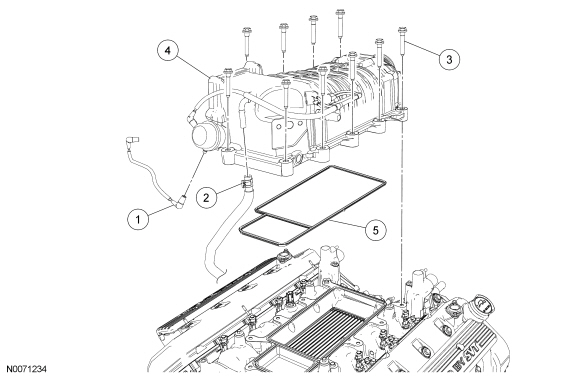

7. Remove the 10 bolts and the SC .

8. Remove and discard the SC gasket.
   • Cover the lower intake manifold with a shop towel to prevent foreign material from falling into the engine.

Installation

1. NOTE: Install a new gasket.

   Position the SC gasket on the lower intake manifold dowels.

2. Position the SC and install the bolts.
   • Tighten the bolts in the sequence shown in 2 stages:
     • Stage 1: Tighten to 5 Nm (44 lb-in).
     • Stage 2: Tighten to 25 Nm (18 lb-ft).

3. Connect the SC bubbler hose and the SC bypass vacuum actuator vacuum connector.

4. Install the fuel rail. For additional information, refer to Section 303-04C .

5. Install the EGR system module. For additional information, refer to Section 303-08 .

6. Rotate the drive belt tensioner clockwise and attach the drive belt to the SC pulley.

7. Connect the battery ground cable. For additional information, refer to Section 414-01 .
