SECTION 303-13: Evaporative Emissions
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

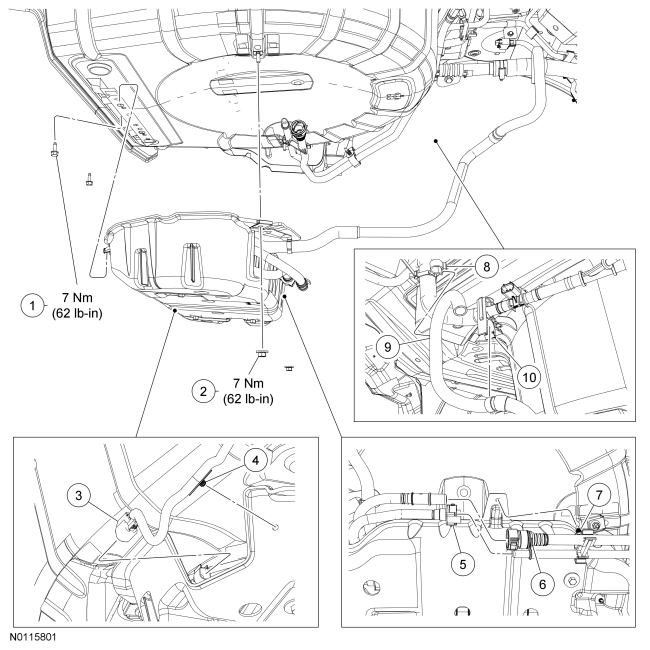

| Item | Part Number | Description |
|---|---|---|
| 1 | W715191 | EVAP canister assembly bolt (2 required) |
| 2 | N621906 | EVAP canister assembly nut (2 required) |
| 3 | — | EVAP canister assembly electrical connector (part of 14A005) |
| 4 | — | Wiring harness retainer (part of 14A005) |
| 5 | — | EVAP canister fuel vapor tube quick connect coupling (part of 9E857) |
| 6 | — | Fuel vapor tube assembly quick connect coupling (part of 9E325) |
| 7 | — | Retainer clip (part of 9J279) |
| 8 | — | Retainer clip (part of 9E325) |
| 9 | 9S327 | Fresh air hose |
| 10 | — | Retainer clip (part of 9E325) |

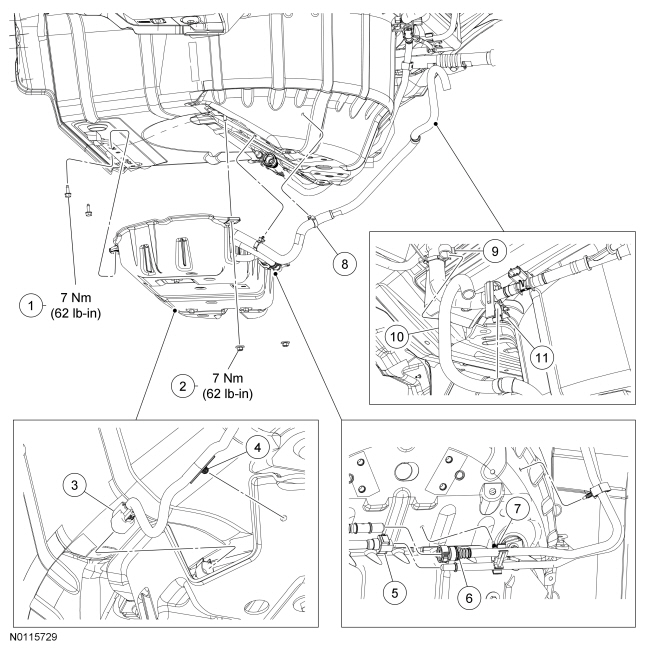

| Item | Part Number | Description |
|---|---|---|
| 1 | W715191 | EVAP canister assembly bolt (2 required) |
| 2 | N621906 | EVAP canister assembly nut (2 required) |
| 3 | — | EVAP canister assembly electrical connector (part of 14A005) |
| 4 | — | Wiring harness retainer (part of 14A005) |
| 5 | — | EVAP canister fuel vapor tube quick connect coupling (part of 9E857) |
| 6 | — | Fuel vapor tube assembly quick connect coupling (part of 9E325) |
| 7 | — | Retainer clip (part of 9J279) |
| 8 | — | Fresh air hose retainer (part of 9S327) |
| 9 | — | Retainer clip (part of 9E325) |
| 10 | 9S327 | Fresh air hose |
| 11 | — | Retainer clip (part of 9E325) |

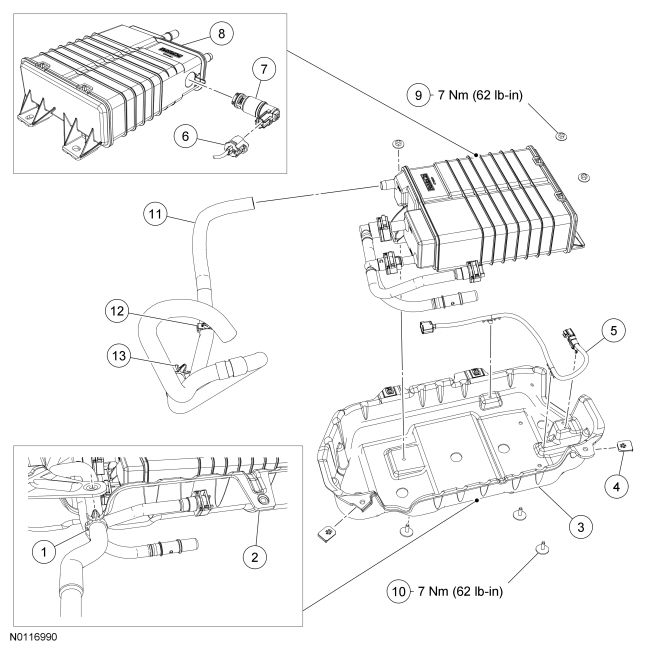

| Item | Part Number | Description |
|---|---|---|
| 1 | — | Fresh air hose-to-tray retainer (Coupe only) (part of 9S327) |
| 2 | — | EVAP canister tray (Coupe) (part of 9E857) |
| 3 | — | EVAP canister tray (Convertible) (part of 9E857) |
| 4 | W715253 | Tinnerman washer (2 required) |
| 5 | 14A411 | Electrical harness |
| 6 | — | EVAP canister vent solenoid electrical connector (part of 14A411) |
| 7 | 9F945 | EVAP canister vent solenoid |
| 8 | — | EVAP canister (part of 9E857) |
| 9 | W700430 | EVAP canister nut (3 required) |
| 10 | W708029 | EVAP canister bolt (3 required) |
| 11 | 9S327 | Fresh air hose (Convertible shown, Coupe similar) |
| 12 | — | Fresh air hose retainer (part of 9S327) |
| 13 | — | Fresh air hose retainer (Convertible only) (part of 9S327) |

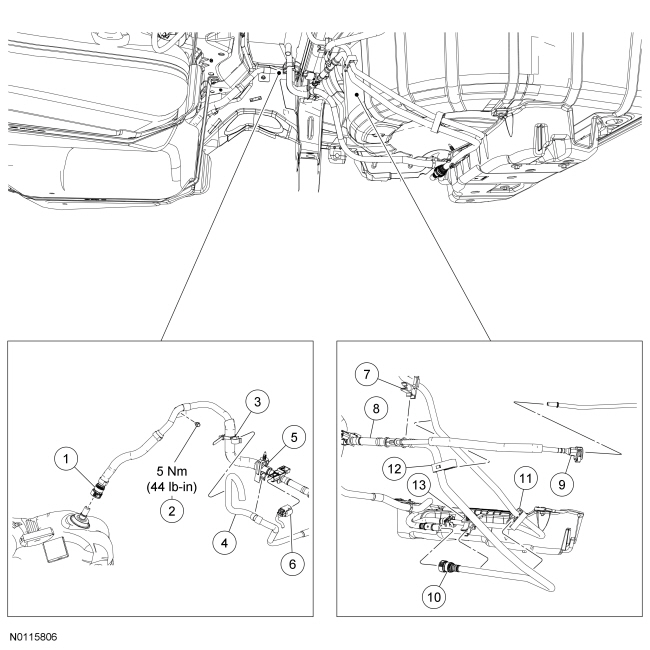

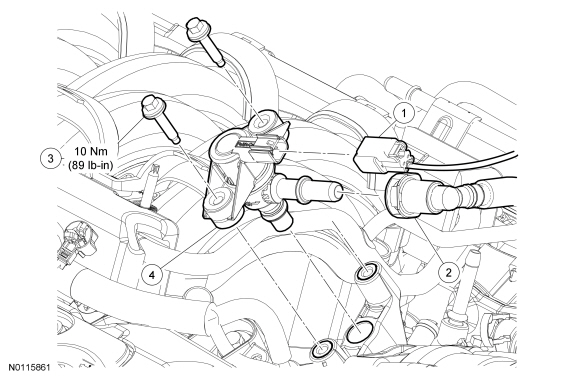

| Item | Part Number | Description |
|---|---|---|
| 1 | — | Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9E325) |
| 2 | W504081 | Fuel vapor tube assembly bolt |
| 3 | — | Retainer clip (part of 9E325) |
| 4 | 9S327 | Fresh air hose |
| 5 | — | Retainer clip (part of 9E325) |
| 6 | — | FTP sensor electrical connector (part of 14A005) |
| 7 | — | Separator clip (part of 9J279) |
| 8 | 9E325 | Fuel vapor tube assembly |
| 9 | — | Fuel vapor tube assembly-to-fuel tank filler pipe recirculation tube quick connect coupling (part of 9E325) |
| 10 | — | Fuel vapor tube assembly-to- EVAP canister vapor tube quick connect coupling (part of 9E325) |
| 11 | — | Separator clip (part of 9J279) |
| 12 | — | Separator clip (part of 9E325) |
| 13 | — | Retainer clip (part of 9J279) |
| Item | Part Number | Description |
|---|---|---|
| 1 | W500015 | EVAP canister purge valve bolt (2 required) |
| 2 | 9J280 | Fuel vapor tube |
| 3 | — | EVAP canister purge valve electrical connector (part of 12A581) |
| 4 | 9G866 | EVAP canister purge valve |

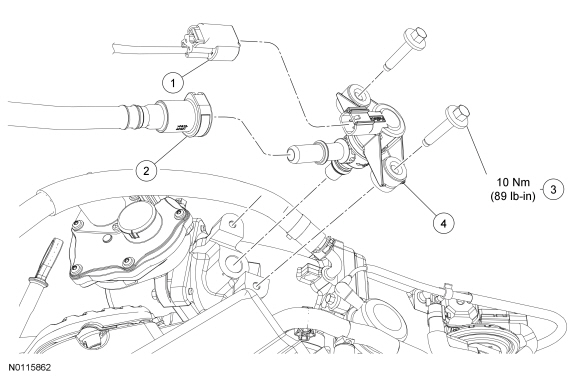

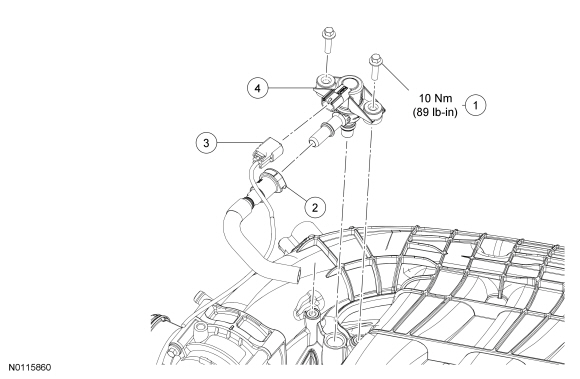

| Item | Part Number | Description |
|---|---|---|
| 1 | — | EVAP canister purge valve electrical connector (part of 12A581) |
| 2 | 9G271 | Fuel vapor tube |
| 3 | W503278 | EVAP canister purge valve bolt (2 required) |
| 4 | 9G866 | EVAP canister purge valve |
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | EVAP canister purge valve electrical connector (part of 12A581) |
| 2 | 9G271 | Fuel vapor tube |
| 3 | N806154 | EVAP canister purge valve bolt (2 required) |
| 4 | 9G866 | EVAP canister purge valve |
