SECTION 303-14: Electronic Engine Controls
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Mass Air Flow (MAF) Sensor

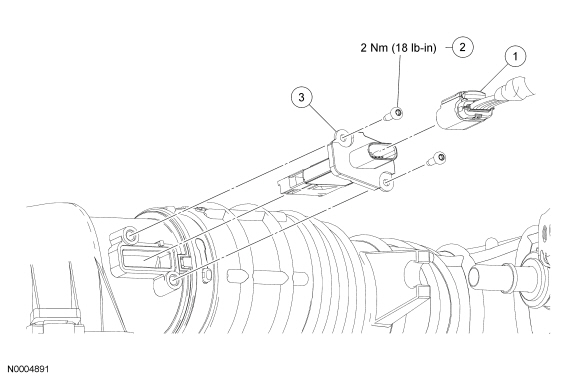

Item Part Number Description
1 14A464 Mass Air Flow (MAF) sensor electrical connector (part of 12B637)
2 W709287 MAF sensor screw (2 required)
3 12B579 MAF sensor

Removal and Installation

  1. Disconnect the Mass Air Flow (MAF) sensor electrical connector.
  1. Remove the 2 screws and the MAF sensor.
  1. To install, reverse the removal procedure.
