SECTION 303-14: Electronic Engine Controls
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Powertrain Control Module (PCM)


Special Tool(s)
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

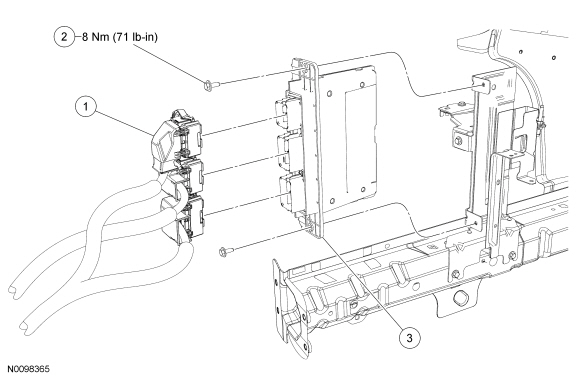

Item Part Number Description
1 14A464 PCM electrical connector (3 required)
2 W505423 PCM bolt (2 required)
3 12A650 PCM

Removal

  1. Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to Section 418-01 .
  1. Remove the 8 retainers and the radiator sight shield.
  1. Disconnect the 3 PCM electrical connectors.
  1. Remove the 2 bolts and the PCM.

Installation

  1. Install the PCM and the 2 bolts.
  1. Connect the 3 PCM electrical connectors.
  1. Install the radiator sight shield and the 8 retainers.

  1. NOTE: If the Programmable Module Installation (PMI) procedure was not successful in downloading the data from the vehicles original PCM, then the oil life data of the vehicle is lost. If this occurs, and the oil life cannot be determined through service history or customer interview, it is recommended the vehicle engine oil and filter be changed and the oil change minder reset.

    Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to Section 418-01 .
  1. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
