SECTION 303-14: Electronic Engine Controls
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Supercharger Bypass Vacuum Actuator


General Equipment
Actuator Adjustment Tool

Removal

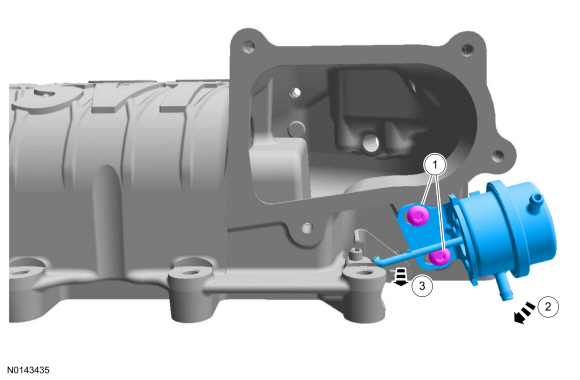

  1. Remove the SC . Refer to Section 303-12 .

Installation

  1. NOTICE: The actuator adjustment tool included with the new actuator kit must be used when installing the Supercharger (SC) bypass vacuum actuator. Failure to correctly adjust the actuator will result in incorrect operation of the SC assembly.

    General Equipment: Actuator Adjustment Tool.
    1. Tighten to 20 Nm (177 lb-in).
  1. Remove General Equipment: Actuator Adjustment Tool.
  1. Install the SC . Refer to Section 303-12 .
