SECTION 204-01: Front Suspension
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Wheel Bearing and Wheel Hub

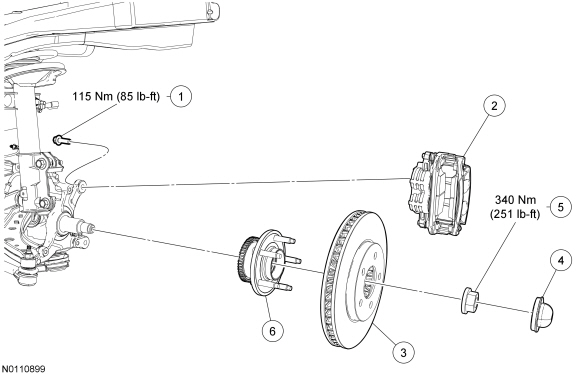

Item Part Number Description
1 W710233 Brake caliper anchor plate bolt (2 required)
2 — Brake caliper, pads and anchor plate assembly
3 1125 Brake disc
4 1N135 Wheel hub grease cap
5 3B477 Wheel hub nut
6 1104 Wheel hub assembly

Removal and Installation

NOTICE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part number or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

  1. Remove the wheel and tire. For additional information, refer to Section 204-04 .

  1. NOTICE: Do not allow the caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Remove the brake anchor plate bolts and position the brake caliper and anchor plate assembly aside.
  1. Remove the brake disc.
  1. Remove and discard the wheel hub grease cap.

  1.  WARNING: The wheel hub nut is a one-time use item and a new wheel hub nut must be installed. Failure to do so may result in hub separation from the vehicle and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the wheel hub nut.
  1. Remove the wheel bearing and wheel hub.
  1. To install, reverse the removal procedure.
