SECTION 205-02: Rear Drive Axle/Differential — Ford 8.8-Inch Ring Gear
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

Differential Cooler


Material
Item Specification
Additive Friction Modifier
XL-3 (US); CXL-3 (Canada) 		EST-M2C118-A
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant
XY-75W85-QL 		WSS-M2C942-A

Removal

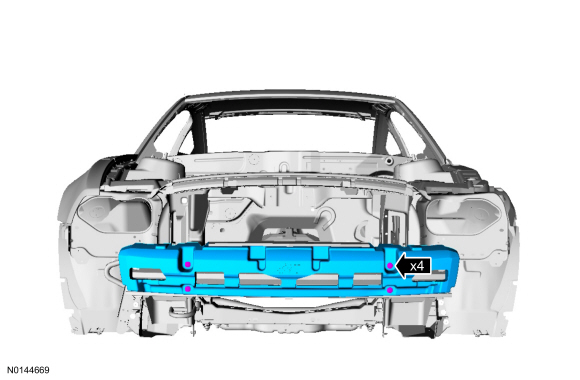

  1. Remove the front bumper cover. Refer to Section 501-19 .

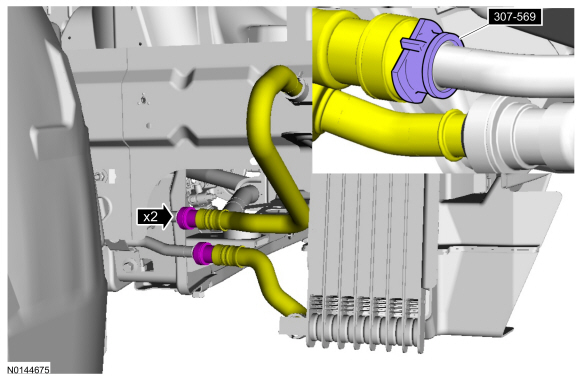

  1. Special Tool(s): Transmission Cooler Line Disconnect Tool 307-569.

Installation

  1. Check the rear differential fluid using a scan tool to operate the differential cooler oil pump and top off as necessary.
  1. To install, reverse the removal procedure.
