SECTION 205-02: Rear Drive Axle/Differential — Ford 8.8-Inch Ring Gear
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

Differential Cooler Oil Pump


Material
Item Specification
Additive Friction Modifier
XL-3 (US); CXL-3 (Canada) 		EST-M2C118-A
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant
XY-75W85-QL 		WSS-M2C942-A

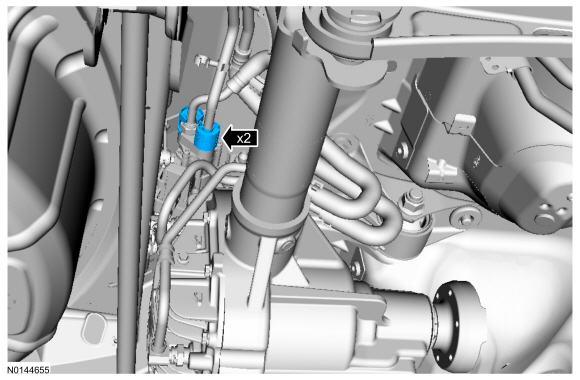

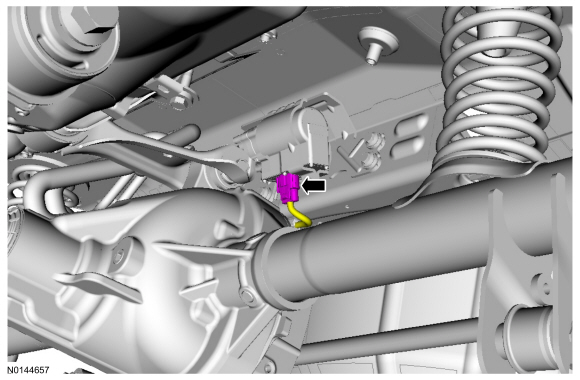

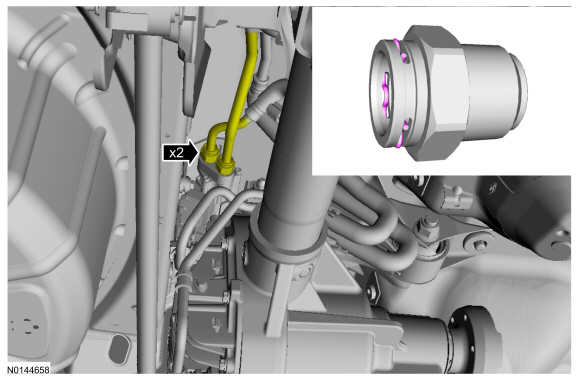

Removal

Installation

  1. Check the rear differential fluid using the scan tool to operate the differential cooler oil pump and top off as necessary.
  1. To install, reverse the removal procedure.
