SECTION 206-03: Front Disc Brake
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

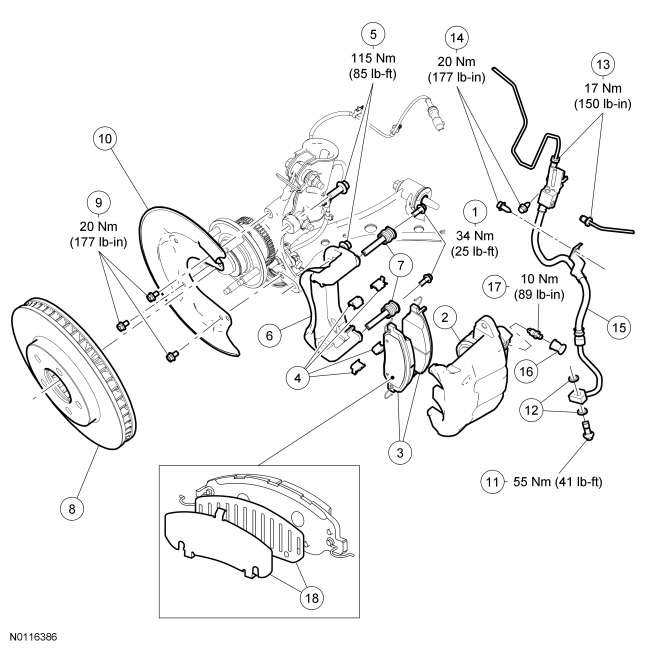

| Item | Part Number | Description |
|---|---|---|
| 1 | — | Brake caliper guide pin bolts (part of 2C150) |
| 2 | 2B120 RH/ 2B121 LH | Brake caliper |
| 3 | 2001 | Brake pads kit |
| 4 | — | Spring clips (part of 2001) |
| 5 | W710233 | Brake caliper anchor plate bolts |
| 6 | 2B292 | Brake caliper anchor plate |
| 7 | — | Guide pins (part of 2C150) |
| 8 | 1125 | Brake disc |
| 9 | W500020 | Brake disc shield bolts |
| 10 | 2K004 | Brake disc shield |
| 11 | W712275 | Brake caliper flow bolt |
| 12 | 2149 | Copper washers |
| 13 | — | Brake tube fittings (part of 2C296) |
| 14 | N802191 | Brake flexible hose bracket bolts |
| 15 | 2078 | Brake flexible hose |
| 16 | — | Bleeder screw cap (part of 2208) |
| 17 | 2208 | Bleeder screw |
| 17 | — | Shims (8 cylinder only)(part of 2001) |
NOTE: 6 piston caliper similar.

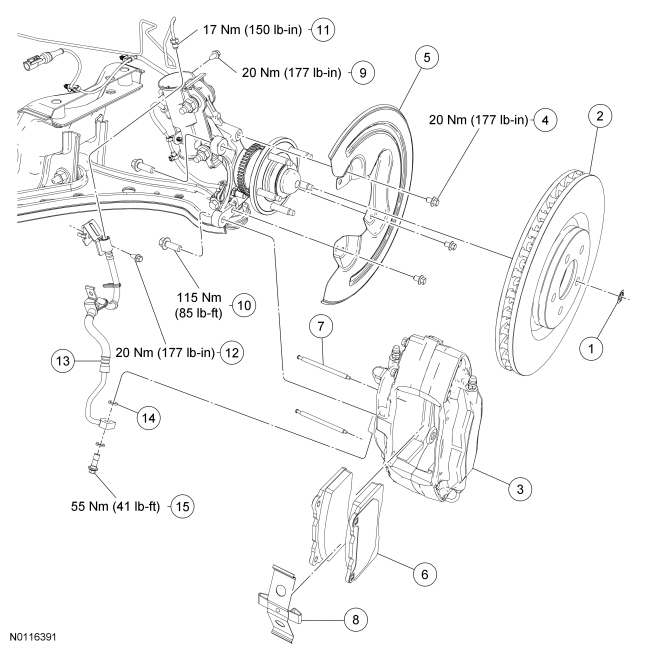

| Item | Part Number | Description |
|---|---|---|
| 1 | 383609 | Retaining nut |
| 2 | 1125 | Brake disc |
| 3 | 2B120 RH/ 2B121 LH | Brake caliper |
| 4 | W500020 | Brake disc shield bolt (3 required) |
| 5 | 2K004 | Brake disc shield |
| 6 | 2001 | Brake pad (2 required) |
| 7 | — | Brake pad mounting pin (2 required) (part of 2B164) |
| 8 | — | Spring retainer clip (part of 2B164) |
| 9 | N802191 | Brake hose-to-strut bolt |
| 10 | W710233 | Brake caliper bolt (2 required) |
| 11 | — | Brake tube fitting (part of 2C296) |
| 12 | N802191 | Brake flexible hose bracket bolt |
| 13 | 2078 | Brake flexible hose |
| 14 | 2149 | Copper washer (2 required) |
| 15 | W712275 | Brake caliper flow bolt |
NOTE: A revised part, with the same base part number, has been released for the RH brake hose. When installing a new RH brake hose, position the anti-rotation tab on the mounting bracket toward the front of the vehicle and install the bolt with the head toward the rear of the vehicle.
Refer to the procedures and/or the exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications and Special Tools. Items in the exploded view may not be listed in the order of removal.
