2014 Mustang Workshop Manual

SECTION 206-03: Front Disc Brake	2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION	Procedure revision date: 01/07/2013

Brake Disc

Material
Item	Specification
High Temperature Nickel Anti-Seize Lubricant XL-2	—
Metal Brake Parts Cleaner PM-4-A or PM-4-B (US); CPM-4 (Canada)	—

Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Remove the wheel and tire. For additional information, refer to Section 204-04 .

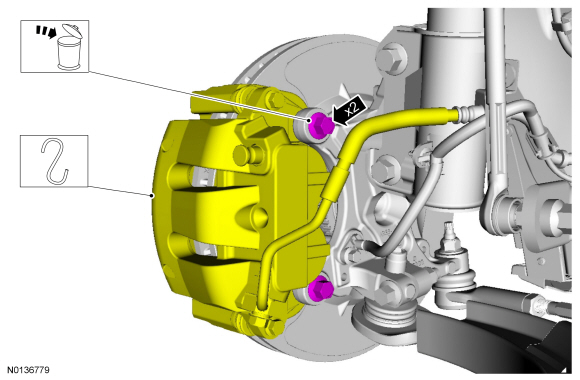

Vehicles with 2 piston calipers

NOTICE: Do not allow the brake caliper, brake pads and anchor plate assembly to hang from the brake hose or damage to the hose may occur.
Discard the specified component. Follow local disposal regulations. Relocate and support the component.
- To install, tighten the new brake caliper anchor plate bolts to 115 Nm (85 lb-ft).

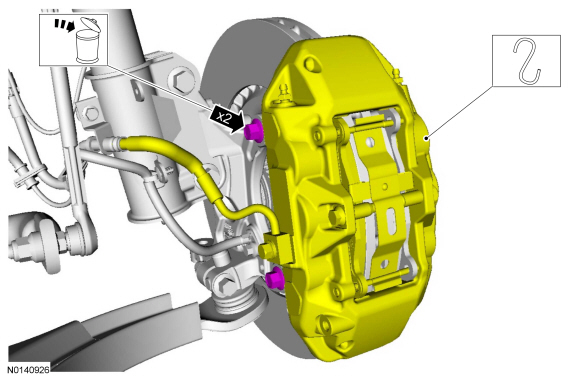

Vehicles with 4 or 6 piston calipers

NOTICE: Do not allow the brake caliper assembly to hang from the brake hose or damage to the hose may occur.
Discard the specified component. Follow local disposal regulations. Relocate and support the component.
- To install, tighten the new brake caliper bolts to 115 Nm (85 lb-ft).

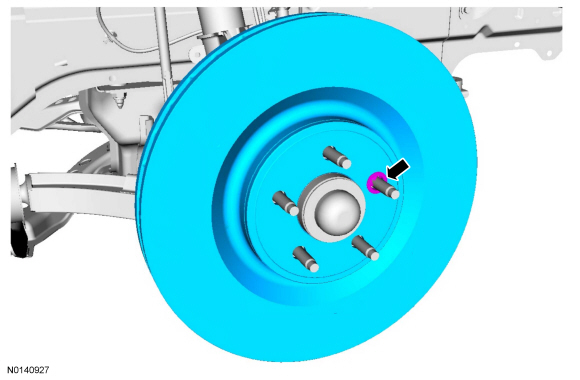

All vehicles

Installation

NOTICE: Do not use an abrasive sanding disc since it will remove paint or other protective finishes from the wheel or metal from the mounting surfaces, adversely affecting corrosion protection and brake disc lateral runout.

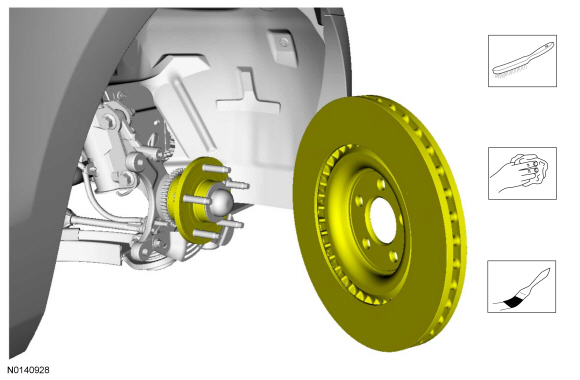

Wire brush. Clean the specified component with the specified material. Apply the specified chemical with a brush.

To install, reverse the removal procedure.
