Brake Flexible Hose

Removal

 WARNING: Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.

 WARNING: Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Vehicles with 6 piston calipers shown, 2 and 4 piston calipers similar.

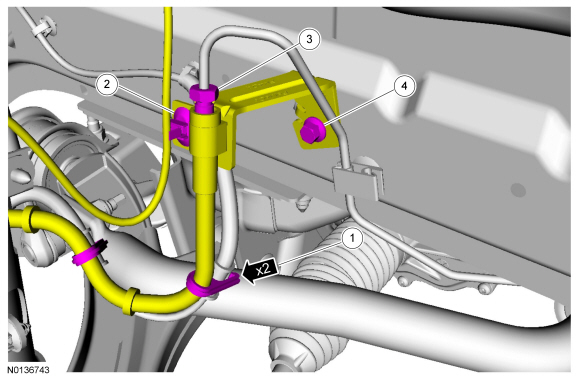

1. • To install, tighten the brake tube fitting to 17 Nm (150 lb-in).
   • To install, tighten the brake flexible hose bracket bolt to 20 Nm (177 lb-in).

2. • To install, tighten to 20 Nm (177 lb-in).

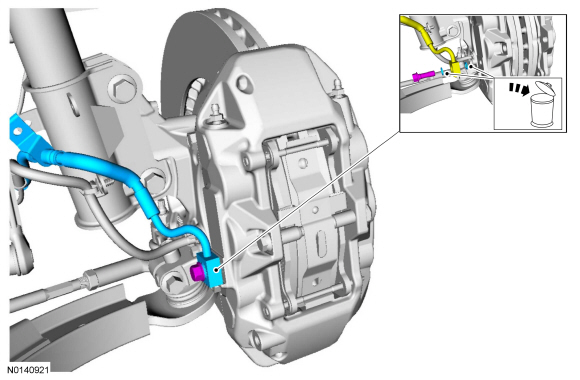

3. Discard the specified component. Follow local disposal regulations.
   • To install, tighten to 55 Nm (41 lb-ft).

Installation

1. To install, reverse the removal procedure.
   • Bleed the brake caliper. For additional information, refer to Section 206-00 for Component Bleeding.
