SECTION 206-04: Rear Disc Brake
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

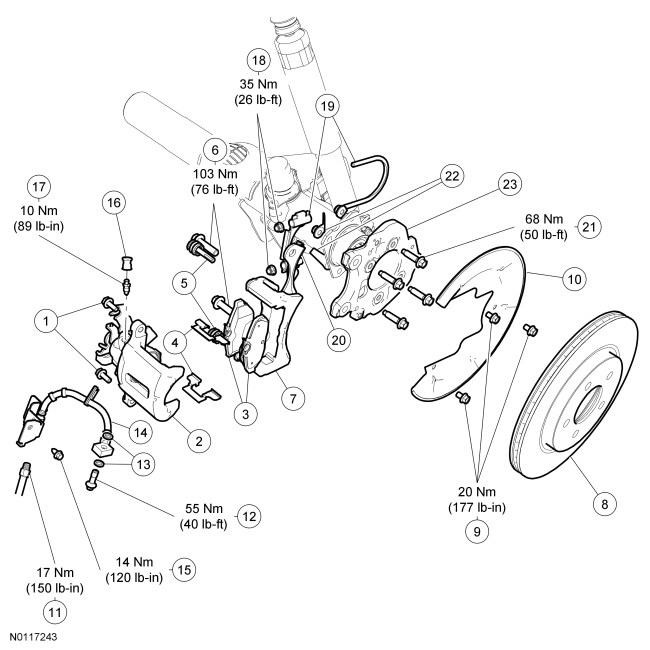

NOTE: 3.7L and 5.0L shown, 5.8L similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2N386 | Brake caliper guide pin bolts |
| 2 | 2552 RH/ 2553 LH | Brake caliper |
| 3 | 2200 | Brake pads (kit) |
| 4 | — | Spring clips (part of kit 2200) |
| 5 | — | Guide pin and boot (part of kit 2B296) |
| 6 | W705821 | Brake caliper anchor plate bolt kits |
| 7 | 2B511 | Brake caliper anchor plate |
| 8 | 2C026 | Brake disc |
| 9 | W500020 | Brake disc shield bolts (part of 2C029) |
| 10 | 2C029 | Brake disc shield |
| 11 | — | Brake tube fitting (part of 2268) |
| 12 | W712275 | Brake caliper flow bolt |
| 13 | W712362 | Copper washers |
| 14 | 2A442 RH/ 2A478 LH | Brake flexible hose |
| 15 | N802191 | Brake flexible hose bracket bolt |
| 16 | — | Bleeder screw cap (part of 2N033) |
| 17 | 2N033 | Bleeder screw |
| 18 | W520112 | Anti-moan bracket U-bolt nuts (if equipped) |
| 19 | — | Anti-moan bracket U-bolt and clamp (part of 2C371) (if equipped) |
| 20 | 2C371 | Anti-moan bracket (if equipped) |
| 21 | — | Brake caliper support bracket bolt (4 required) (part of 4001) |
| 22 | — | Brake caliper support bracket flag nuts (4 required) (part of 4001) |
| 23 | — | Brake caliper support bracket (part of 4001) |
