SECTION 206-09: Anti-Lock Brake System (ABS) and Stability Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Wheel Speed Sensor Ring — Rear


Special Tool(s)
Axle Bearing/Seal Plate
205-090 (T75L-1165-B)
Installer, Wheel Speed Sensor Ring
206-041 (T89P-20202-A)
Pinion Bearing Cone Remover
205-D002 (D79P-4621A) or equivalent

Removal

  1. Remove the rear axle shaft. For additional information, refer to Section 205-02 .

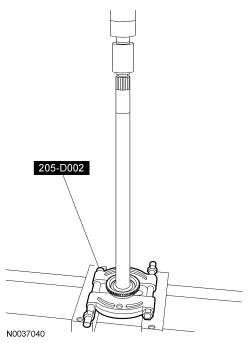

  1. Using the Pinion Bearing Cone Remover, remove the anti-lock brake sensor indicator from the axle shaft.

Installation

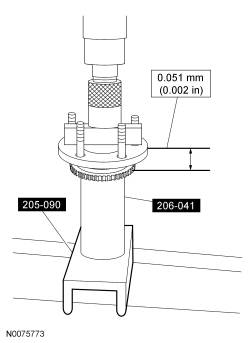

  1. Using the Axle Bearing/Seal Plate and the Wheel Speed Sensor Ring Installer, align the rear anti-lock brake sensor indicator to the rear axle shaft.
  1. Using the Axle Bearing/Seal Plate and the Wheel Speed Sensor Ring Installer, press the rear anti-lock brake sensor on the rear axle shaft to specification.
  1. Install the rear axle shaft. For additional information, refer to Section 205-02 .
