SECTION 307-01: Automatic Transaxle/Transmission — 6R80
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

Transmission Insulator and Retainer

NOTE: Refer to the on-line Workshop Manual to view this illustration as an interactive exploded view, requires Adobe® Acrobat® 8.0 or higher.

NOTE: Refer to the on-line Workshop Manual to learn about using an Interactive Illustration.

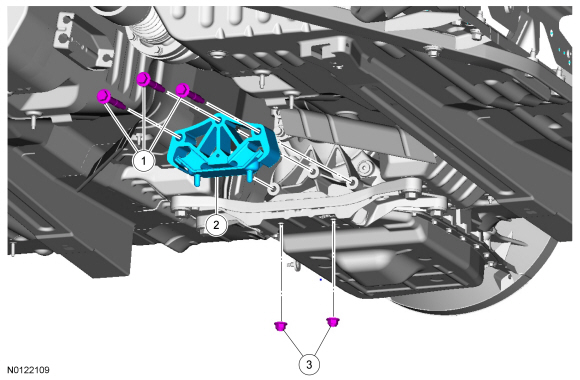

Item Part Number Description
1 W506146 Transmission support insulator-to-transmission bolts (3 required) 103 Nm (76 lb-ft)
2 6068 Transmission support insulator
3 W520113 Transmission support insulator nuts (2 required) 70 Nm (52 lb-ft)
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .
  1. Remove the 2 transmission support insulator nuts.
  1. Using a suitable transmission jack, support the transmission.
  1. Remove the 3 bolts and the transmission support insulator.
  1. To install, reverse the removal procedure.
