SECTION 307-02A: Transmission Cooling — 6R80
| 2014 Mustang Workshop Manual
|
DESCRIPTION AND OPERATION
| Procedure revision date: 01/07/2013
|
Vehicles with automatic transmissions are equipped with a transmission fluid cooler. The transmission fluid cooler transfers heat from the transmission fluid to the ambient air.
For Transmission Fluid Cooler Backflushing and Cleaning, refer to Section 307-01 .

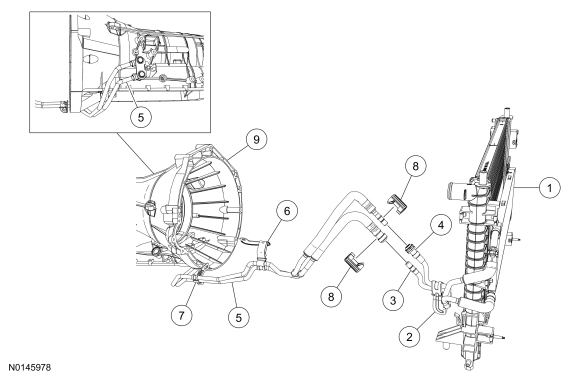

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A095 | Transmission fluid cooler |
| 2 | — | Transmission fluid cooler assembly bracket (part of 7R081) |
| 3 | 7R081 | Transmission fluid cooler outlet hose |
| 4 | 7R081 | Transmission fluid cooler inlet hose |
| 5 | 7R081 | Transmission fluid cooler tube assembly |
| 6 | — | Transmission fluid cooler tube assembly bracket (part of 7R081) |
| 7 | — | Transmission fluid cooler tube assembly bracket (part of 7R081) |
| 8 | 7Z465 | Transmission fluid cooler tube quick connect secondary latches |
| 9 | 7005 | Transmission case |

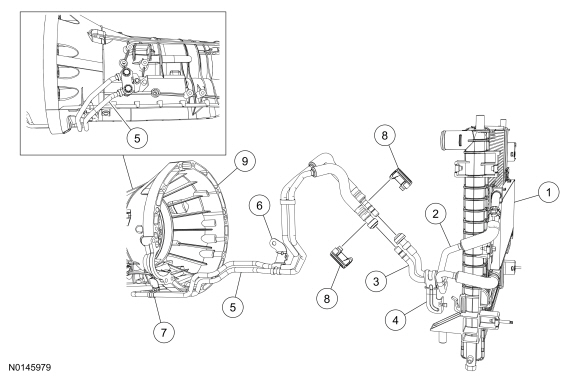

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A095 | Transmission fluid cooler |
| 2 | 7R081 | Transmission fluid cooler inlet hose |
| 3 | 7R081 | Transmission fluid cooler outlet hose |
| 4 | — | Transmission fluid cooler assembly bracket (part of 7R081) |
| 5 | 7R081 | Transmission fluid cooler tube assembly |
| 6 | — | Transmission fluid cooler tube assembly bracket (part of 7R081) |
| 7 | — | Transmission fluid cooler tube assembly bracket (part of 7R081) |
| 8 | 7Z465 | Transmission fluid cooler tube quick connect secondary latches |
| 9 | 7005 | Transmission case |
