SECTION 307-02B: Transmission Cooling — TR6060
| 2014 Mustang Workshop Manual
|
DESCRIPTION AND OPERATION
| Procedure revision date: 01/07/2013
|
These vehicles are equipped with an OTA transmission fluid cooler. The transmission fluid cooler transfers heat from the transmission fluid to the ambient air.

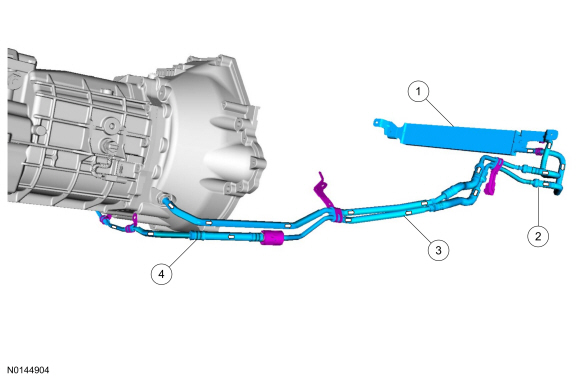

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A095 | OTA transmission fluid cooler assembly |
| 2 | — | Front transmission fluid cooler tube assembly (part of 7A095) |
| 3 | 7H420 | Rear transmission fluid cooler tube assembly |
| 4 | 7R081 | Rear Transmission fluid cooler outlet hose |
