SECTION 308-02: Clutch Controls
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Clutch Master Cylinder


Material
Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid
PM-1-C (US); CPM-1-C (Canada) 		WSS-M6C62-A or WSS-M6C65-A1

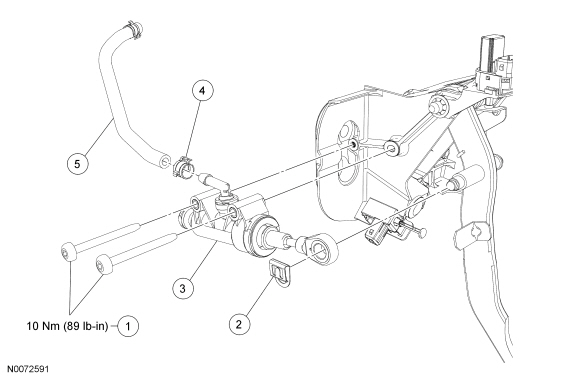

Item Part Number Description
1 — Clutch master cylinder bolts (2 required)
2 — Retaining clip
3 7A543 Clutch master cylinder
4 — Hose clamp
5 — Reservoir hose

Removal and Installation

 WARNING: Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTICE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

  1. Remove the brake pedal and bracket assembly. Refer to Section 206-06 .
  1. Remove the retaining clip from the clutch pedal pin.
  1. Remove the 2 clutch master cylinder bolts, then disconnect the clutch master cylinder from the clutch pedal.
  1. Remove the reservoir hose from the clutch master cylinder.

NOTE: Install new hose clamps on the reservoir hose.

  1. To install, reverse the removal procedure.
  1. Bleed the clutch hydraulic system. Refer to Clutch System Bleeding .
  1. Check the clutch for normal operation.
