SECTION 308-02: Clutch Controls
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|
Clutch Slave Cylinder
Material
| Item
| Specification
|
|---|
High Performance DOT 3 Motor Vehicle Brake Fluid
PM-1-C (US); CPM-1-C (Canada)
| WSS-M6C62-A or WSS-M6C65-A1
|

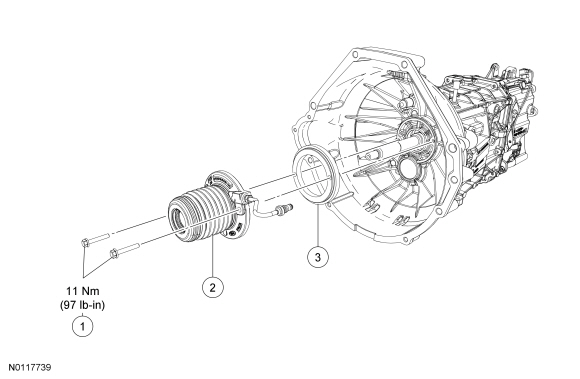

| Item
| Part Number
| Description
| | 1
| —
| Clutch slave cylinder bolt (2 required)
|
| 2
| 7A508
| Clutch slave cylinder
|
| 3
| 6C055
| Clutch slave cylinder spacer (5.0L [4V] engines only)
|
Removal
WARNING: Do not breathe dust or use compressed air to blow dust from storage containers or friction components. Remove dust using government-approved techniques. Friction component dust may be a cancer and lung disease hazard. Exposure to potentially hazardous components may occur if dusts are created during repair of friction components, such as brake pads and clutch discs. Exposure may also cause irritation to skin, eyes and respiratory tract, and may cause allergic reactions and/or may lead to other chronic health effects. If irritation persists, seek medical attention or advice. Failure to follow these instructions may result in serious personal injury.
WARNING: Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.
- Remove the transmission. Refer to
Section 308-03A
or
Section 308-03B
.
- Place the transmission on a workbench.
- Separate the clutch hydraulic tube connector from the clutch slave cylinder.
- Remove the 2 clutch slave cylinder bolts. Pull the clutch slave cylinder outward and release the tube from the retaining clip.
- Inspect the clutch slave cylinder for the following:
- Worn or damaged release bearing
- Rotate the release bearing while applying pressure. If the bearing rotation is rough, install a new clutch slave cylinder.
Installation
- Install a new retaining clip.
- Position the clutch slave cylinder to the transmission, inserting the tube through the retaining clip. Install the 2 clutch slave cylinder bolts.
- Tighten to 11 Nm (97 lb-in).
- Install the clutch hydraulic tube connector.
NOTE:
Before securing the transmission to the engine, connect the hydraulic tube to the clutch hydraulic tube connector. When connecting the hydraulic tube, a click will be heard when the tube is correctly connected. Pull on the tube to make sure it is locked in the fitting.
Install the transmission. Refer to
Section 308-03A
or
Section 308-03B
.
- Bleed the clutch hydraulic system. Refer to
Clutch System Bleeding
.
