SECTION 308-03A: Manual Transaxle/Transmission — MT82 Getrag 6-Speed
2014 Mustang Workshop Manual
GENERAL PROCEDURES
Procedure revision date: 01/07/2013

Transmission Draining and Filling


Material
Item Specification
Motorcraft® Dual Clutch Transmission Fluid
XT-11-QDC 		WSS-M2C200-D2

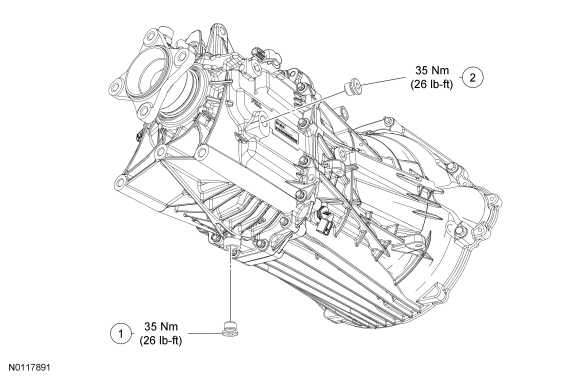

Item Part Number Description
1 W701065 Drain plug
2 W701065 Fill plug
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .
  1. Remove the drain plug and drain the fluid.
  1. Install the drain plug.

  1. NOTE: Prior to removal, clean the area around the fill plug.

    Remove the fill plug.

  1. NOTICE: The use of any other transmission fluid than specified can result in the transmission failing to operate in a normal manner or transmission failure.

    NOTE: Do not overfill the transmission. This will cause transmission fluid to be forced out of the case.

    Using a suitable oil suction gun, fill the transmission with the recommended fluid.
  1. Install the fill plug.
