SECTION 308-03A: Manual Transaxle/Transmission — MT82 Getrag 6-Speed
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

Gearshift Lever

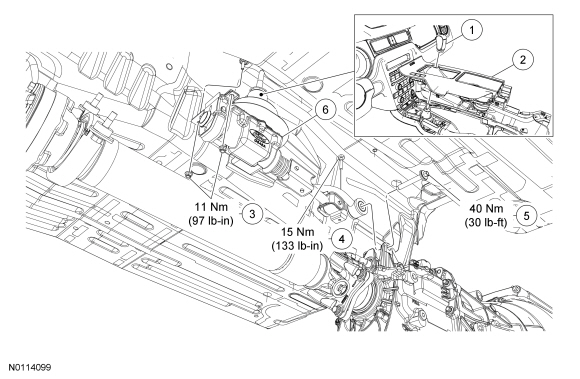

Item Part Number Description
1 7K327 Gearshift knob
2 044D90 Center console finish panel
3 W520101 Gearshift lever nuts (2 required)
4 7C211 Gearshift lever bolt
5 W715200 Gearshift lever-to-transmission bolt
6 7C453 Gearshift lever assembly
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .
  1. Rotate the gearshift knob counterclockwise, remove the gearshift knob and position the center console finish panel aside.
  1. Remove the driveshaft. For additional information, refer to Section 205-01 .
  1. Remove the 4 subframe cross brace bolts and the subframe cross brace.
  1. Using a suitable transmission jack, support the transmission.
  1. Remove the crossmember. For additional information, refer to Section 502-00 .
  1. Lower the transmission.
  1. Remove the 2 gearshift lever nuts.
  1. Remove the gearshift lever assembly.
    1. Remove the gearshift lever bolt.
      • To install, tighten to 15 Nm (133 lb-in).
    1. Remove the gearshift lever-to-transmission bolt.
      • To install, tighten to 40 Nm (30 lb-ft).
    1. Remove the gearshift lever assembly from the transmission by pulling towards the rear of the vehicle.
  1. To install, reverse the removal procedure. Before installing the center console finish panel, lightly pull up on the gearshift lever boot to fully seat the gearshift lever boot in the pan.
