SECTION 308-03A: Manual Transaxle/Transmission — MT82 Getrag 6-Speed
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

Transmission Rear Support Insulator

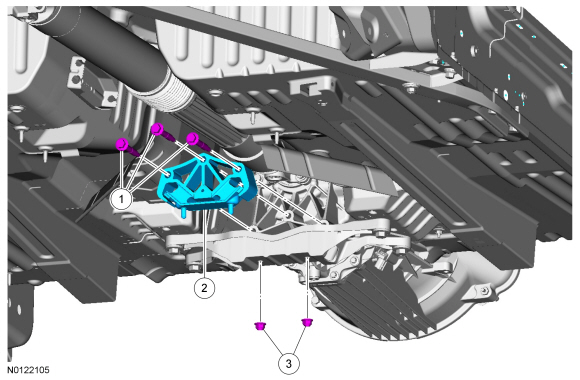

NOTE: Refer to the on-line Workshop Manual to view this illustration as an interactive exploded view, requires Adobe® Acrobat® 8.0 or higher.

NOTE: Refer to the on-line Workshop Manual to learn about using an Interactive Illustration.


Item Part Number Description
1 W506146 Transmission support insulator bolts (3 required)
2 6068 Transmission support insulator
3 W520113 Transmission support insulator nuts (2 required)
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .
  1. Remove the 2 transmission support insulator nuts.
  1. Using a suitable transmission jack, support the transmission.
  1. Remove the 3 transmission support insulator bolts and the transmission support insulator.
  1. To install, reverse the removal procedure.
