SECTION 308-03A: Manual Transaxle/Transmission — MT82 Getrag 6-Speed
2014 Mustang Workshop Manual
REMOVAL
Procedure revision date: 01/07/2013

Input Shaft Seal


Special Tool(s)
Remover, Input Shaft Oil Seal
308-375
Slide Hammer
100-001 (T50T-100-A)

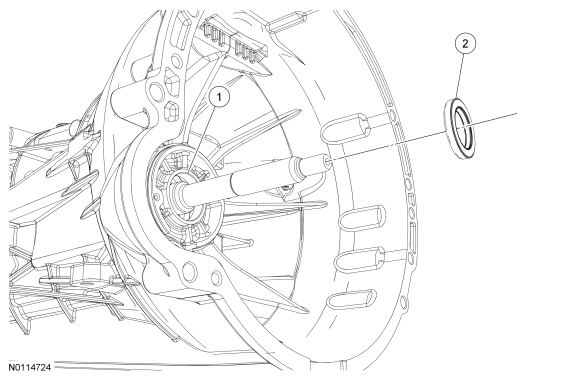

Item Part Number Description
1 7006 Transmission case
2 7048 Input shaft seal
  1. Remove the clutch slave cylinder. For additional information, refer to Section 308-02 .
  1. Using the Input Shaft Oil Seal Remover and the Slide Hammer, remove and discard the input shaft seal.
