SECTION 308-03A: Manual Transaxle/Transmission — MT82 Getrag 6-Speed
2014 Mustang Workshop Manual
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Procedure revision date: 01/07/2013

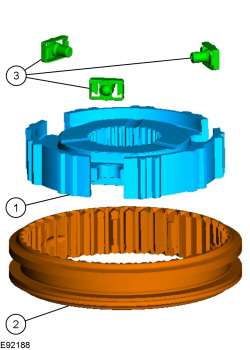

Synchronizers

Disassembly

  1. NOTE: Make a note of/mark the installed positions of the components before removal.

    1. Synchronizer sleeve
    1. Pressure pieces
    1. Synchronizer hub

Assembly

  1. NOTE: Make sure that the components are installed in their original positions.

    1. Synchronizer hub
    1. Synchronizer sleeve
    1. Pressure pieces
