SECTION 308-03B: Manual Transaxle/Transmission — TR6060
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

Gearshift Lever

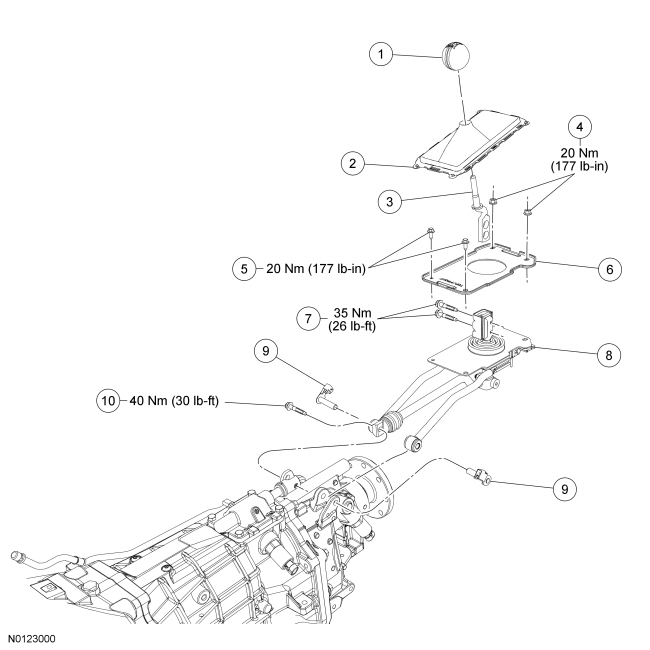

Gearshift Lever Exploded View

Item Part Number Description
1 7213 Gearshift lever knob
2 7277 Gearshift lever boot
3 7210 Upper gearshift lever
4 W707137 Gearshift lever shield nuts
5 W505424 Gearshift lever shield bolts
6 7277 Gearshift lever shield
7 — Upper gearshift lever bolts
8 7400 Gearshift lever assembly
9 7314 Gearshift lever retainers
10 W500324 Gearshift lever bolt
  1. Remove the upper gearshift lever knob and position the floor console finish panel aside.
  1. Remove the upper gearshift lever bolts and the upper gearshift lever.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .
  1. Remove the 4 subframe cross brace bolts and the subframe cross brace.
  1. Using a suitable transmission jack, support the transmission.
  1. Remove the 4 rear transmission crossmember bolts.
  1. Remove the driveshaft. For additional information, refer to Section 205-01 .
  1. Lower the transmission enough to access the gearshift lever nuts.
  1. Remove the 2 rear gearshift lever nuts.
  1. Remove the gearshift lever assembly.

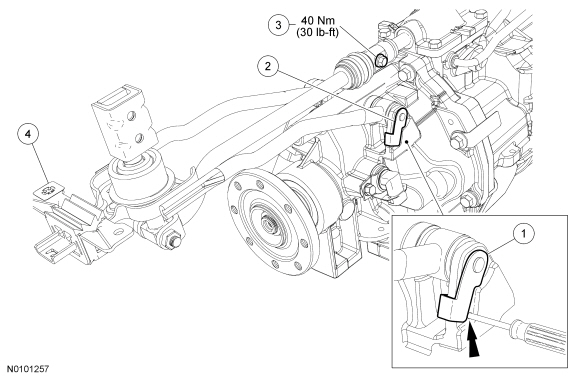

    1. Insert a pick into the lower hole to unlock the clip.
    1. Rotate the gearshift lever retainers, then remove the retainers.
    1. Remove the gearshift lever bolt.
      To install, tighten to 40 Nm (30 lb-ft).
    1. Remove the gearshift lever assembly from the vehicle.
  1. To install, reverse the removal procedure.
