SECTION 308-03B: Manual Transaxle/Transmission — TR6060
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

Transmission Rear Support Insulator

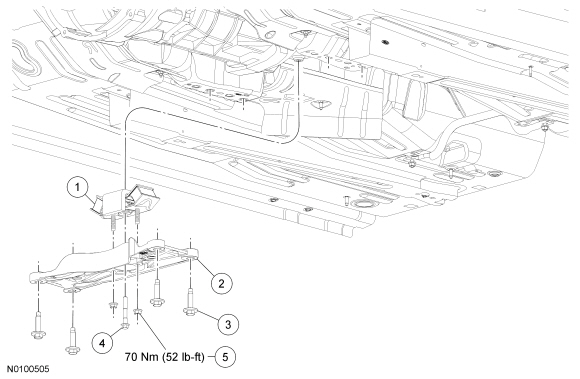

Transmission Rear Support Insulator

Item Part Number Description
1 7E373 Transmission rear support insulator
2 5060 Transmission crossmember
3 W505466 Transmission crossmember bolt (4 required)
4 N804518 Transmission rear support insulator center bolt
5 W520113 Transmission rear support insulator nut (2 required)
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .

  1. NOTE: Note that the crossmember hump side goes up.

    Remove the transmission crossmember. For additional information, refer to Section 502-00 .
  1. Remove the 2 transmission rear support insulator nuts. Separate the transmission rear support insulator from the transmission mount.
  1. To install, reverse the removal procedure.
