SECTION 308-03B: Manual Transaxle/Transmission — TR6060	2014 Mustang Workshop Manual
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES	Procedure revision date: 01/07/2013

Countershaft

Special Tool(s)
	Installer, Drive Pinion Bearing Cone 205-004 (T53T-4621-B)
	Plate, Bearing Oil Seal 205-090 (T75L-1165-B)
	Puller, Bearing 205-D064 (D84L-1123-A)
	Remover/Installer, Bearing Tube 308-025 (T75L-7025-C)

Disassembly and Assembly

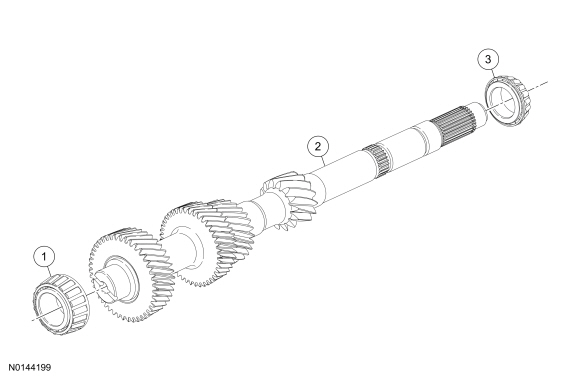

Item	Part Number	Description
1	7025	Countershaft front bearing
2	7113	Countershaft
3	7025	Countershaft rear bearing

Using the Bearing Puller and a press, remove the countershaft rear bearing.

Using the Bearing Puller and a press, remove the countershaft front bearing.

Inspect the countershaft.
- Check the countershaft surface for wear or damage. Install a new countershaft as necessary.
- Check the gear teeth for wear, pitting, scoring, spalling or fractures. Install a new countershaft as necessary.

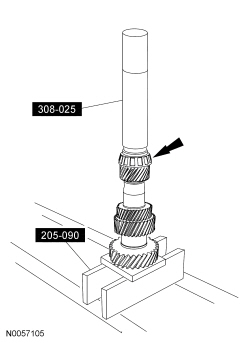

Using the Bearing Oil Seal Plate and the Bearing Tube Remover/Installer, install the countershaft rear bearing.

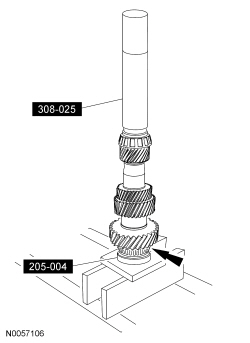

Using the Drive Pinion Bearing Cone Installer and the Bearing Tube Remover/Installer, install the countershaft front bearing.
