SECTION 308-03B: Manual Transaxle/Transmission — TR6060	2014 Mustang Workshop Manual
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES	Procedure revision date: 01/07/2013

Gearshift Rail and Fork

Disassembly and Assembly

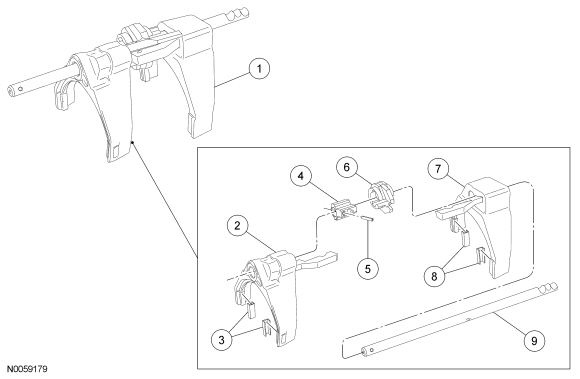

1st/2nd and 3rd/4th Shift Rail Assembly

Item	Part Number	Description
1	—	1st/2nd and 3rd/4th shift rail assembly
2	7230	1st/2nd shift fork and link
3	7L082	1st/2nd shift fork pads
4	7814	Selector pin
5	7A082	Roll pin
6	7K201	Interlock plate
7	7230	3rd/4th shift fork and link
8	7L082	3rd/4th shift fork pads
9	7L267	1st/2nd, 3rd/4th shift rail

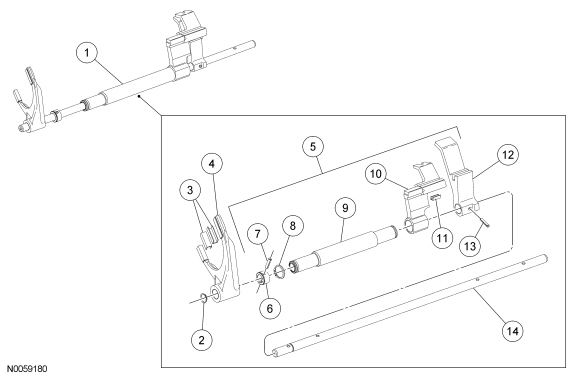

5th/6th and Reverse Shift Rail Assembly

Item	Part Number	Description
1	—	5th/6th and reverse shift rail assembly
2	7A082	Snap ring
3	7L082	5th/6th shift fork pads
4	7230	5th/6th shift fork
5	7241	5th/6th shift rail assembly
6	—	Shift rail collar (part of 7241)
7	—	Roll pin (part of 7241)
8	—	Snap ring (part of 7241)
9	—	5th/6th inner shift rail lever (part of 7241)
10	—	5th/6th outer shift rail lever (part of 7241)
11	—	5th/6th outer shift lever pad (part of 7241)
12	—	Reverse shift rail lever (part of 7241)
13	—	Roll pin (part of 7241)
14	—	Reverse shift rail (part of 7241)

Disassemble the 1st/2nd and 3rd/4th shift rail as follows:
- Rotate the interlock plate until it is opposite of the shift links.
- Slide off the 3rd/4th shift fork and shift link.
- Slide off the 1st/2nd shift fork and shift link.
- Using a 5/32-inch drift and a hammer, remove and discard the roll pin. Remove the interlock plate.

Disassemble the 5th/6th and reverse shift rail as follows:
- Using a 5/32-inch drift and a hammer, remove and discard the roll pins. Slide the collar and the reverse shift lever from the shift rail.
- Remove and discard the snap ring.
- Slide off the 5th/6th shift lever and shift link.
- Using a press, separate the 5th/6th outer shift rail lever from the inner shift rail lever.

Inspect the shift rail components.
- Check the rails, shift forks, shift levers and shift links for wear or damage. Install new components as necessary.
- Check the shift fork pads for wear. Install new pads as necessary.

To assemble, reverse the disassembly procedure.
- Install new roll pins and snap ring.
