SECTION 308-03B: Manual Transaxle/Transmission — TR6060
2014 Mustang Workshop Manual
DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Procedure revision date: 01/07/2013

Input Shaft and Bearing


Special Tool(s)
Puller, Bearing
205-D064 (D84L-1123-A)

Disassembly and Assembly

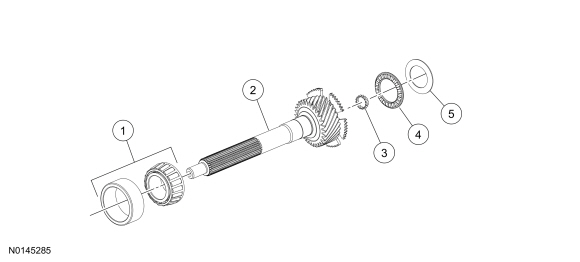

Item Part Number Description
1 7025 Input shaft bearing
2 7017 Input shaft
3 7025 Cylindrical roller bearing
4 7025 Axial thrust bearing
5 7025 Axial thrust washer

  1. NOTE: Any wear or damage on the input shaft can prevent the clutch from operating correctly.

    Inspect the splines on the input shaft for wear or damage. If worn or damaged, install a new input shaft.
  1. Using the Bearing Puller and a press, remove the input shaft front bearing.
  1. Using the Bearing Puller and a press, install a new input shaft bearing.
