SECTION 310-01: Fuel Tank and Lines
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

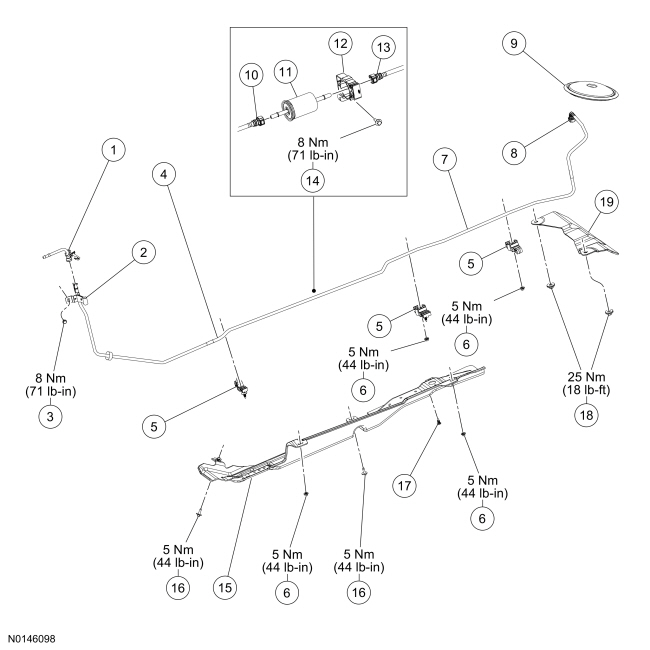

| Item | Part Number | Description |
|---|---|---|
| 1 | — | Fuel jumper tube-to-front fuel tube spring lock coupling (part of 9J280) |
| 2 | — | Fuel tube bundle bracket (part of 9J279) |
| 3 | W705968 | Fuel tube bundle bracket bolt |
| 4 | 9J279 | Fuel tube (front fuel tube on 5.8L vehicles) |
| 5 | — | Fuel tube bundle retainer (part of 9J279) |
| 6 | W713475 | Fuel tube bundle retainer nut (4 required) |
| 7 | 9J279 | Fuel tube (rear fuel tube on 5.8L vehicles) |
| 8 | — | Fuel tube-to- FP module quick connect coupling (part of 9J279) |
| 9 | 9C335 | Fuel Pump (FP) module access cover |
| 10 | — | Front fuel tube-to-fuel filter spring lock coupling (part of 9J279) (5.8L vehicles only) |
| 11 | 9155 | Fuel filter (5.8L vehicles only) |
| 12 | 9180 | Fuel filter bracket (5.8L vehicles only) |
| 13 | — | Rear fuel tube-to-fuel filter quick connect coupling (part of 9J279) (5.8L vehicles only) |
| 14 | W701107 | Fuel filter bracket bolt (5.8L vehicles only) |
| 15 | 9E313 | Fuel tube bundle shield |
| 16 | W704652 | Fuel tube bundle shield bolt (2 required) |
| 17 | — | Fuel tube bundle shield pin-type retainer (part of 9E313) |
| 18 | N804620 | Fuel tank deflector nut (2 required) |
| 19 | 9N226 | Fuel tank deflector |
