SECTION 310-01: Fuel Tank and Lines
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

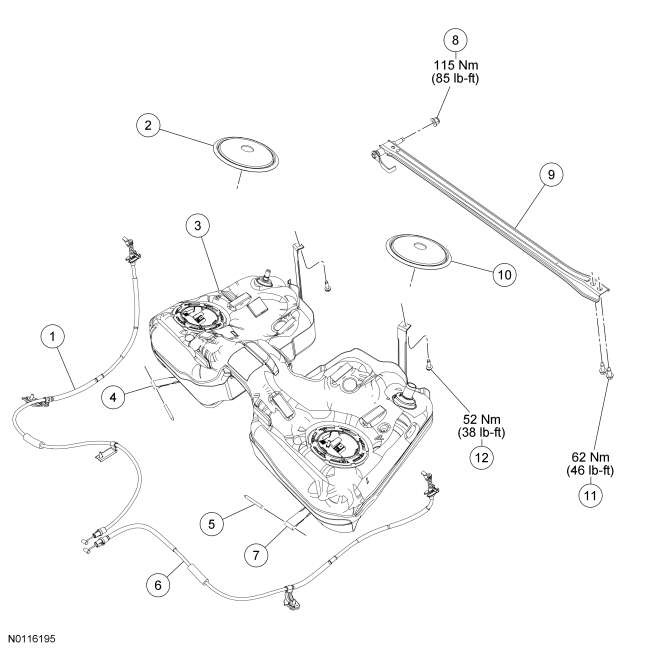

| Item | Part Number | Description |
|---|---|---|
| 1 | 2A635 | Rear parking brake cable (RH) |
| 2 | 9C335 | Fuel level sensor access cover |
| 3 | 9002 | Fuel tank |
| 4 | 9055 | Fuel tank strap (RH) |
| 5 | W710861 | Fuel tank strap pin (2 required) |
| 6 | 2A823 | Rear parking brake cable (LH) |
| 7 | 9055 | Fuel tank strap (LH) |
| 8 | W520214 | Lateral stiffener bar-to-body mount nut |
| 9 | 3424 | Lateral stiffener bar |
| 10 | 9C335 | Fuel Pump (FP) module access cover |
| 11 | W711331 | Lateral stiffener bar-to-body bolt (2 required) |
| 12 | W710947 | Fuel tank strap bolt (2 required) |
| Item | Part Number | Description |
|---|---|---|

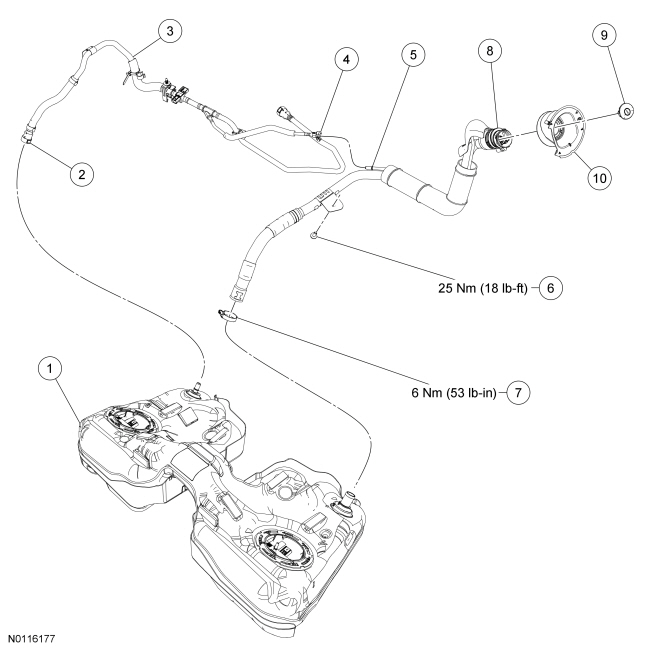

| 1 | 9002 | Fuel tank |
| 2 | — | Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9E325) |
| 3 | 9E325 | Fuel vapor tube assembly |
| 4 | — | Fuel vapor tube assembly-to-fuel tank filler pipe recirculation tube quick connect coupling (part of 9E325) |
| 5 | — | Fuel tank filler pipe recirculation tube (part of 9034) |
| 6 | W713388 | Fuel tank filler pipe bracket bolt |
| 7 | W525937 | Fuel tank filler pipe hose clamp |
| 8 | 9034 | Easy Fuel™ (capless) fuel tank filler pipe |
| 9 | 9C268 | Easy Fuel™ (capless) fuel tank filler pipe lock assembly (optional) |
| 10 | 9A212 | Fuel filler cup bezel |
