SECTION 211-05: Steering Column Switches
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Ignition Switch

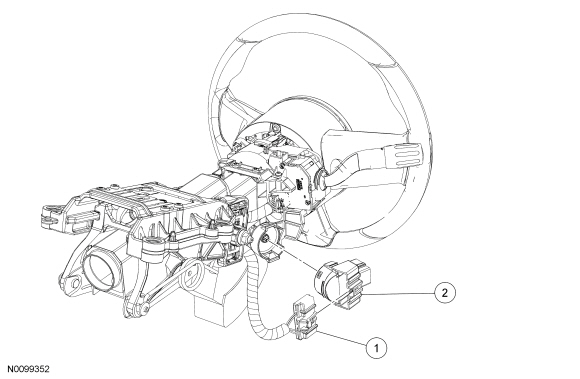

Item Part Number Description
1 — Ignition switch electrical connector (part of 14401)
2 11572 Ignition switch

Removal and Installation

NOTICE: Do not remove the ignition lock cylinder and the ignition switch at the same time or damage to the column may result.

  1. Depower the Supplemental Restraint System (SRS). For additional information, refer to Section 501-20B .
  1. Remove the steering column shroud. For additional information, refer to Section 211-04 .
  1. Disconnect the ignition switch electrical connector.
  1. Release the 2 locking tabs and remove the ignition switch.
  1. To install, reverse the removal procedure.
  1. Repower the SRS . For additional information, refer to Section 501-20B .
