SECTION 211-05: Steering Column Switches
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

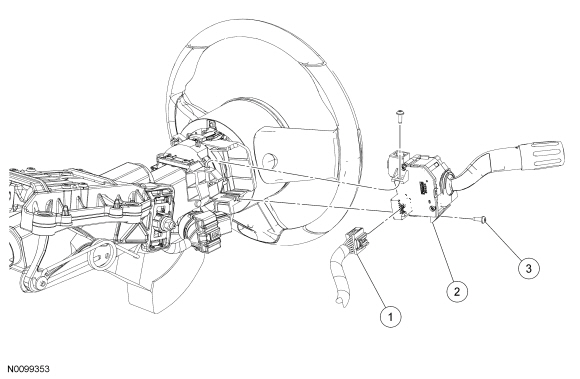

Steering Column Multifunction Switch


Item Part Number Description
1 — Multifunction switch electrical connector (part of 14401)
2 13K359 Multifunction switch
3 W506943 Multifunction switch screw (2 required)

Removal and Installation

  1. Remove the steering column shroud. For additional information, refer to Section 211-04 .
  1. Disconnect the multifunction switch electrical connector.
  1. Remove the 2 screws and the multifunction switch.
  1. To install, reverse the removal procedure.
