SECTION 412-01: Climate Control
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

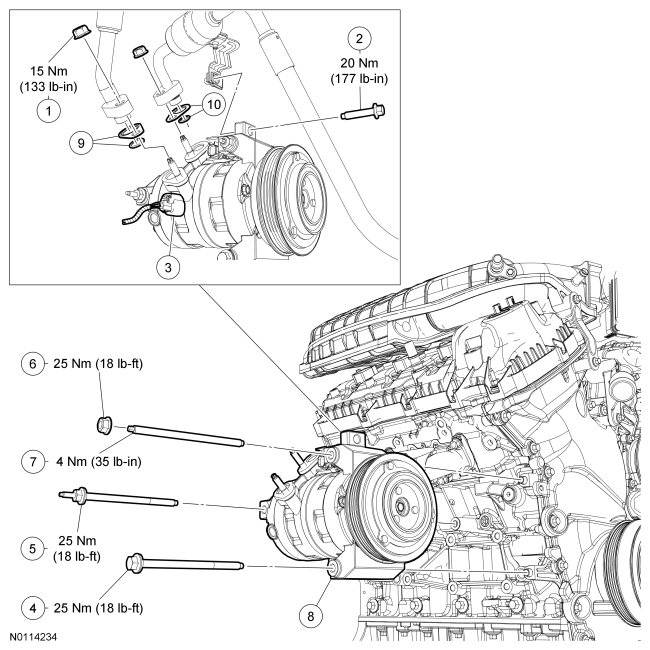

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C compressor fitting nut (2 required) |
| 2 | W500310 | Compressor-to-condenser discharge line bracket bolt |
| 3 | — | A/C clutch field coil electrical connector (part of 12B637) |
| 4 | W714373 | A/C compressor bolt |
| 5 | W714820 | A/C compressor bolt |
| 6 | W520413 | A/C compressor nut |
| 7 | W711926 | A/C compressor stud |
| 8 | 19703 | A/C compressor |
| 9 | 19B596 | O-ring seal and gasket seal kit |
| 10 | 19B596 | O-ring seal and gasket seal kit |

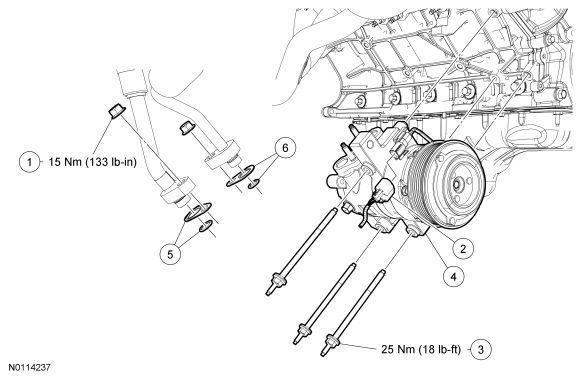

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | A/C compressor fitting nut (2 required) |
| 2 | — | A/C clutch field coil electrical connector (part of 12B637) |
| 3 | W714820 | A/C compressor bolt (3 required) |
| 4 | 19703 | A/C compressor |
| 5 | 19B596 | O-ring seal and gasket seal kit |
| 6 | 19B596 | O-ring seal and gasket seal kit |

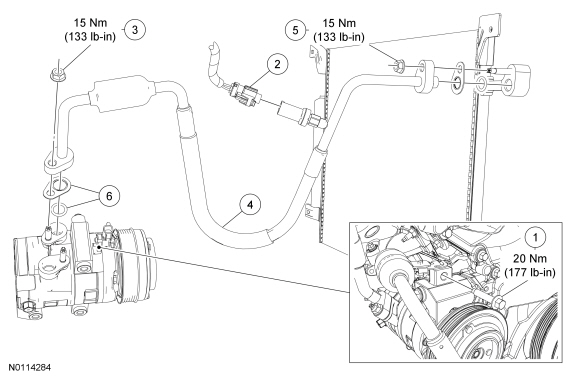

| Item | Part Number | Description |
|---|---|---|
| 1 | W500310 | Compressor-to-condenser discharge line bracket bolt (3.7L only) |
| 2 | — | A/C pressure transducer electrical connector (part of 12B637) |
| 3 | W520413 | A/C compressor discharge fitting nut |
| 4 | 19972 | Compressor-to-condenser discharge line |
| 5 | W520413 | Condenser inlet fitting nut |
| 6 | 19B596 | O-ring seal and gasket seal kit (2 required) |

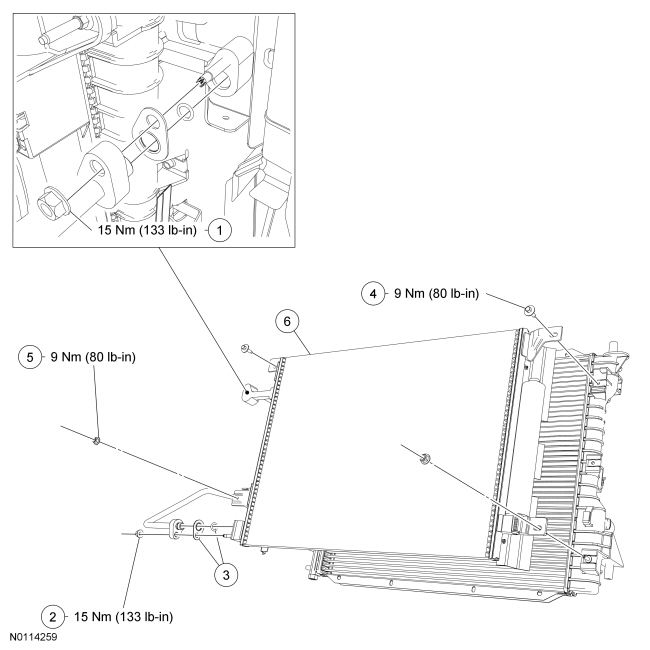

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Condenser inlet fitting nut |
| 2 | W520413 | Condenser outlet fitting nut |
| 3 | 19B596 | O-ring seal and gasket seal kit (2 required) |
| 4 | W704652 | Condenser bolt (2 required) |
| 5 | W520101 | Condenser nut (2 required) |
| 6 | 19712 | Condenser core |

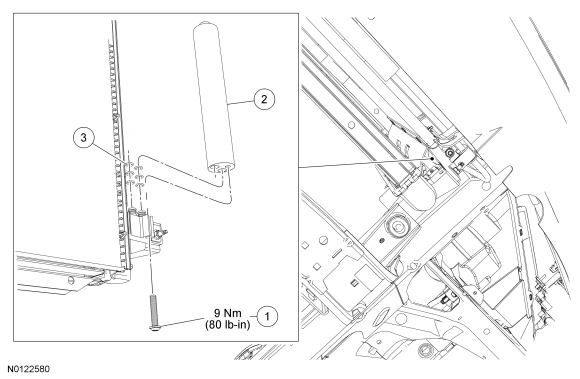

| Item | Part Number | Description |
|---|---|---|
| 1 | — | Receiver/drier bolt (part of 19C836 kit) |
| 2 | 19C836 | Receiver/drier |
| 3 | — | Receiver/drier fitting O-ring seal (4 required) (part of 19C836 kit) |

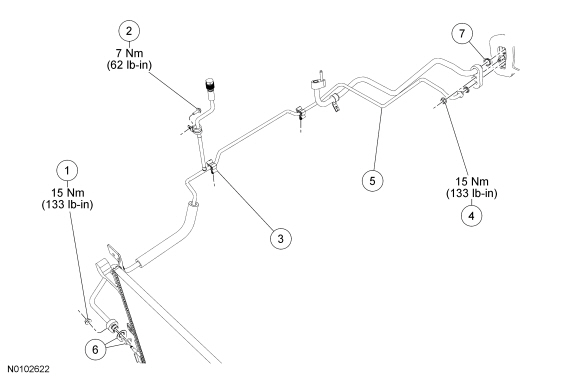

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Condenser outlet fitting nut |
| 2 | W707491 | High-pressure service gauge port valve extension bracket bolt |
| 3 | — | Condenser-to-evaporator line clip (2 required) (part of 19835) |
| 4 | W520413 | Thermostatic Expansion Valve (TXV) fitting nut |
| 5 | 19835 | Condenser-to-evaporator line |
| 6 | 19B596 | O-ring seal and gasket seal kit |
| 7 | 19B596 | Gasket seal (2 pieces from kit required) |

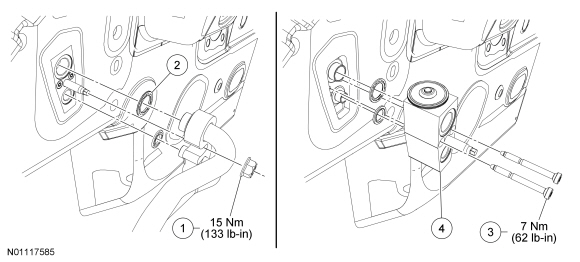

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Thermostatic Expansion Valve (TXV) fitting nut |
| 2 | 19B596 | Gasket seal (4 pieces from kit required) |
| 3 | — | TXV bolt (2 required) (part of 19849 kit) |
| 4 | 19849 | TXV |

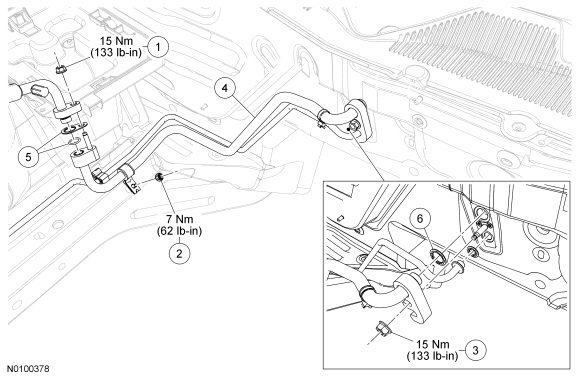

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Evaporator outlet line fitting nut |
| 2 | W520201 | Evaporator outlet line bracket bolt |
| 3 | W520413 | Thermostatic Expansion Valve (TXV) fitting nut |
| 4 | 19835 | Evaporator outlet line |
| 5 | 19B596 | Gasket seal and O-ring seal kit |
| 6 | 19B596 | Gasket seal (2 pieces from kit required) |
