SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Air Conditioning (A/C) Evaporator Discharge Air Temperature Sensor

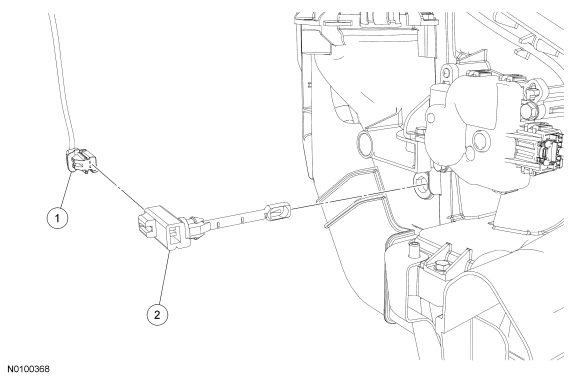

Item Part Number Description
1 — A/C evaporator discharge air temperature sensor electrical connector (part of 18B574)
2 19C734 A/C evaporator discharge air temperature sensor

Removal and Installation

NOTE: The evaporator discharge air temperature sensor can be accessed from below the LH side of the instrument panel to the right of the accelerator pedal.

  1. Disconnect the A/C evaporator discharge air temperature sensor electrical connector.
  1. Detach and remove the A/C evaporator discharge air temperature sensor.
  1. To install, reverse the removal procedure.
