SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 04/04/2013

Ambient Air Temperature Sensor

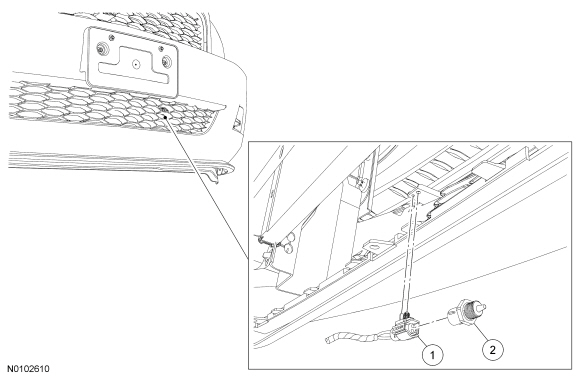

Item Part Number Description
1 — Ambient temperature sensor electrical connector (part of 14290)
2 12A647 Ambient temperature sensor

Removal and Installation

NOTE: 3.7L shown, 5.0L (4V) and 5.8L (4V) similar.

3.7L vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .
  1. Remove the lower radiator splash shield.

All vehicles

  1. NOTE: For 5.0L (4V) and 5.8L (4V) vehicles, the ambient temperature sensor can be accessed through the airflow opening in the front bumper cover.

    Detach the ambient temperature sensor electrical connector pin-type retainer.
  1. Disconnect the ambient temperature sensor electrical connector and remove the ambient temperature sensor.
  1. To install, reverse the removal procedure.
