SECTION 412-01: Climate Control
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Blower Motor

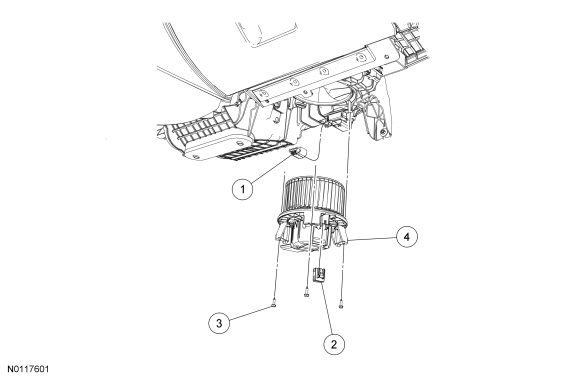

Item Part Number Description
1 — Blower motor speed control electrical connector (part of 18B574)
2 — Blower motor electrical connector (part of 18B574)
3 W701696 Blower motor screw (3 required)
4 19805 Blower motor

Removal and Installation

  1. Disconnect the blower motor speed control electrical connector.
  1. Disconnect the blower motor electrical connector.
  1. Remove the 3 blower motor screws.
  1. Remove the blower motor.
  1. To install, reverse the removal procedure.
